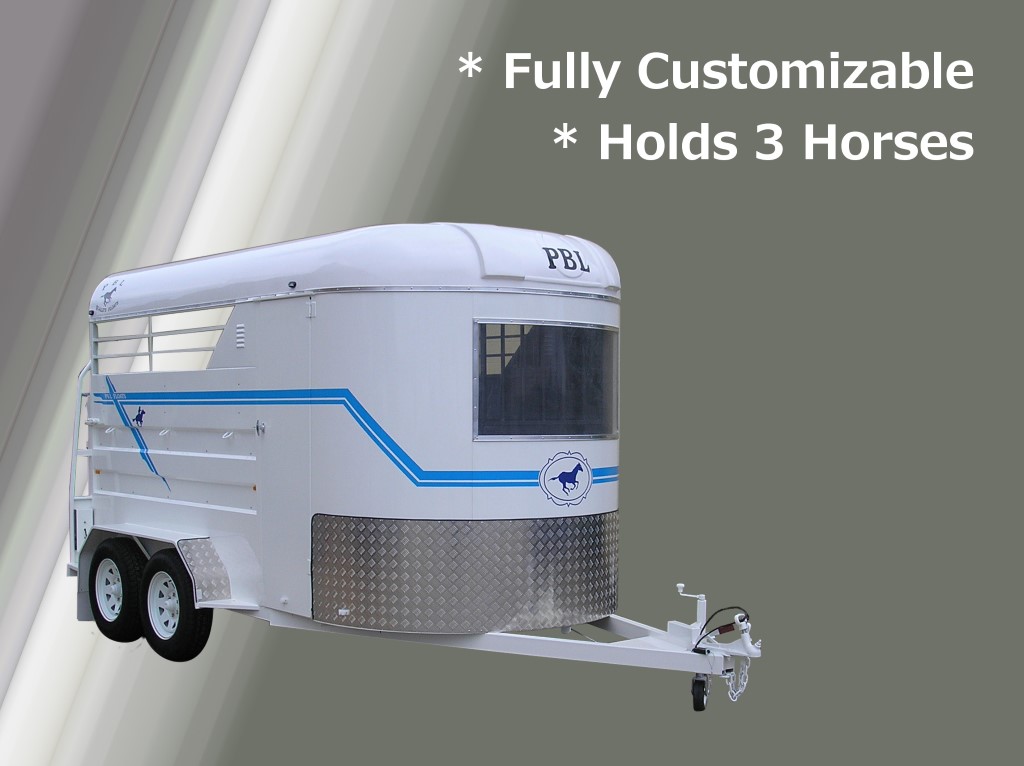

Standard 3 Horse, Angle Load Floats
- Reference No:
- 946
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Float
- Stripping
- Tandem Axle
- White
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | 4200mm x 2000mm x 2200mm |
| ATM | 3500Kg |
| GTM | 3150Kg |
| Bay Length | 2500mm x 710mm |
| Finish | Etch Prime and Two Pac White Paint |
| Inclusions | Four Wheel Electric Brakes (In Cab. Control) Brake Safe Break Away Unit Independent Torsion Rubber Suspension Open Sided Drawbar Infill Algal and Duragal Steel Chassis & Frame Zincaneal Sheet Panels Structural Hardwood Ply G2 F27 Flooring - Sealed Insertion Rubber Matting - Sealer/Adhesive One Piece Fiberglass Roof LED Lights to ADRs - LED Lights to ADRs - Rear Large Combo STI LED Lights to ADRs - 2 x Number Plate Lights LED Lights to ADRs - 2 pair Red Amber Lights Interior Dome LED c/w Switch Front & Rear Wired to Lights Spring Assisted Tailgate - Ply & Rubber , Ali Wear Strip Colorbond Sheet Finish on Tailgate Internal and External Tie Points Angle Divider System c/w Head divider - Removable Rump Padding Kickboard - HDPE 9mm Black Large Front Window Side Access Door - Lockable and Inside Handle Stone Guard 600mm Aluminum Tread Plate Front Curve and Front of Mudguards Wheels 16" 6 Stud Sunrasia Rims, New 205R16 Tyres - 5 8" Swivel Jockey Wheel Rated 10mm Double Safety Chain Pre Paint - Prepsol Clean, Adhesive/Sealer Seal |
| Tare Weight | 1420Kg |
| Warranty | 12 Months Conditional Suspension 5 Years Conditional |
| Striping | 2" & 1" |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLHO.2.001 | Sliding Windows (1000x300) - Screened View Photo |
| PBLHO.2.002 | Side Metal Louvres View Photo |
| PBLHO.2.003 | Rear Barn Doors - Removable |
| PBLHO.2.004 | Rear Door - Lift-up, Gas Strutted View Photo |
| PBLHO.2.005 | Vents - Rotary |
| PBLHO.2.006 | Vents - Pop-up |
| PBLHO.2.007 | Side Dust Covers (White) View Photo |
| PBLHO.2.008 | Rear Dust Cover (White) View Photo |
| PBLHO.2.009 | Swing Saddle Rack (2 Horse) |
| PBLHO.2.010 | Swing Saddle Rack (3 & 4 Horse) |
| PBLHO.2.011 | Swing Tack/Saddle BOX (3 Horse) View Photo |
| PBLHO.2.012 | Swing Tack/Saddle BOX (4 Horse) View Photo |
| PBLHO.2.013 | Fully Padded Divider System View Photo |
| PBLHO.2.014 | Centre Divider Rubber Drop Sheet - (per Divider) |
| PBLHO.2.015 | Adjustable Divider System - (per Divider) |
| PBLHO.2.016 | Mesh Rug Rack View Photo |
| PBLHO.2.017 | Mesh Rug Rack c/w Mesh Door View Photo |
| PBLHO.2.018 | M’Guard T’Box 1200x240x540 c/w Shelf, Hinge Down Door View Photo |
| PBLHO.2.019 | Inside 2/3 Tack Box, Door Outside View Photo |
| PBLHO.2.020 | Additional Internal Dome LED Light c/w Switch |
| PBLHO.2.021 | 20ltr Jerry Can Holder |
| PBLHO.2.022 | Floatwater 41L Tank (On Guard) |
| PBLHO.2.023 | Floatwater 65L Tank (On Guard) View Photo |
| PBLHO.2.024 | 100L Water Tank Unit, Filler and Hand Pump |
| PBLHO.2.025 | 12v Pump, 17 AmpHr Battery |
| PBLHO.2.026 | Awnings - Omn4900 2.6 x 2.5 Blue or Grey View Photo |
| PBLHO.2.027 | Awnings - Omn4900 3.0 x 2.5 Blue or Grey |
| PBLHO.2.028 | Awnings - Omn4900 3.5 x 2.5 Blue or Grey |
| PBLHO.2.029 | Awnings - Omn4900 4.0 x 2.5 Blue or Grey |
| PBLHO.2.030 | Awnings - Omn4900 4.5 x 2.5 Blue or Grey |
| PBLHO.2.031 | Upgrade ATM from 2T to 2.49T Incl. 4 Wheel Brakes/Brakesafe Unit |
| PBLHO.2.032 | Drawbar Brake Controller 12v |
| PBLHO.2.033 | Drawbar Infill Aluminum Checkerplate |
| PBLHO.2.034 | Portable Yards, Set of 8, Mounted View Photo |
| PBLHO.2.035 | Hay Rack and Ladder View Photo |
| PBLHO.2.036 | Gig Hooks (Set) |
| PBLHO.2.037 | Feed Bucket on Mudguard View Photo |
| PBLHO.2.038 | Animat - 10mm Thick. Polymerically Bound Rubber per Sq Mt |
| PBLHO.2.039 | Axles & Load Sharing Rocker Roller Suspension in Lieu of Independent Susp. |
| PBLHO.2.040 | PBL Kitchenette - Bench, Sink, Under Cupboard |
| PBLHO.2.041 | PBL Overhead Cupboards |
| PBLHO.2.042 | Bar Fridge 100Lt. 240v. W500 x H850 x D500 |
| PBLHO.2.043 | Microwave 25L Stainless Steel - W483 x D396 x H281 View Photo |
| PBLHO.2.044 | 240v Power - Switchboard , RCD Protection, 15AMP Inlet , 2 x Double GPO |
Make an Enquiry
If you are interested in this item (or any others) and would like more information, why not contact us on the phone number or enquiry form below.
(07) 3271 1744
