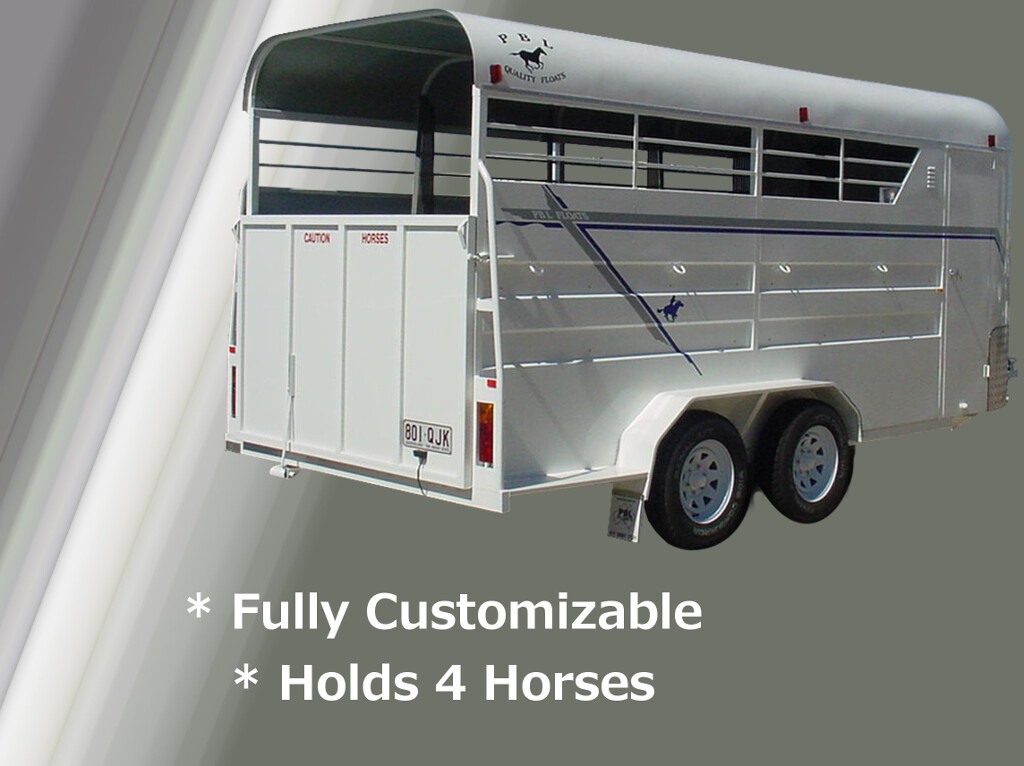

Standard 4 Horse, Angle Load Floats
- Reference No:
- 947
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Float
- Stripping
- Tandem Axle
- White
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | 5800mm x 2000mm x 2200mm |
| ATM | 3500Kg |
| GTM | 3250Kg |
| Bay Length | 2500mm x 710mm |
| Finish | Etch Prime and Two Pac White Paint |
| Inclusions | Four Wheel Electric Brakes (In Cab. Control) Brake Safe Break Away Unit Independent Torsion Rubber Suspension Open Sided Drawbar Infill Algal and Duragal Steel Chassis & Frame Zincaneal Sheet Panels Structural Hardwood Ply G2 F27 Flooring - Sealed Insertion Rubber Matting – Sealer/Adhesive One Piece Fiberglass Roof LED Lights to ADRs ~ Rear Large Combo STI ~ 2 x Number Plate Lights ~ 3 pair Red Amber Lights Interior Dome LED c/w Switch Front & Rear Wired to Lights Spring Assisted Tailgate – Ply & Rubber , Ali Wear Strip Colorbond Sheet Finish on Tailgate Internal and External Tie Points Angle Divider System c/w Head divider – Removable Rump Padding Kickboard – HDPE 9mm Black Large Front Window Side Access Door – Lockable and Inside Handle Stone Guard 600mm Aluminum Tread Plate Front Curve and Front of Mudguards Wheels 16” 6 Stud Sunrasia Rims, New 225R16 Tyres - 5 8" Heavy Duty Swivel Jockey Wheel Rated 10mm Double Safety Chain Pre Paint – Prepsol Clean, Adhesive/Sealer Seal |
| Tare Weight | 1550Kg |
| Warranty | 12 Months Conditional Suspension 5 Years Conditional |
| Striping | 2" & 1" |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLHO.2.001 | Sliding Windows (1000x300) - Screened View Photo |
| PBLHO.2.002 | Side Metal Louvres View Photo |
| PBLHO.2.003 | Rear Barn Doors - Removable |
| PBLHO.2.004 | Rear Door - Lift-up, Gas Strutted View Photo |
| PBLHO.2.005 | Vents - Rotary |
| PBLHO.2.006 | Vents - Pop-up |
| PBLHO.2.007 | Side Dust Covers (White) View Photo |
| PBLHO.2.008 | Rear Dust Cover (White) View Photo |
| PBLHO.2.009 | Swing Saddle Rack (2 Horse) |
| PBLHO.2.010 | Swing Saddle Rack (3 & 4 Horse) |
| PBLHO.2.011 | Swing Tack/Saddle BOX (3 Horse) View Photo |
| PBLHO.2.012 | Swing Tack/Saddle BOX (4 Horse) View Photo |
| PBLHO.2.013 | Fully Padded Divider System View Photo |
| PBLHO.2.014 | Centre Divider Rubber Drop Sheet - (per Divider) |
| PBLHO.2.015 | Adjustable Divider System - (per Divider) |
| PBLHO.2.016 | Mesh Rug Rack View Photo |
| PBLHO.2.017 | Mesh Rug Rack c/w Mesh Door View Photo |
| PBLHO.2.018 | M’Guard T’Box 1200x240x540 c/w Shelf, Hinge Down Door View Photo |
| PBLHO.2.019 | Inside 2/3 Tack Box, Door Outside View Photo |
| PBLHO.2.020 | Additional Internal Dome LED Light c/w Switch |
| PBLHO.2.021 | 20ltr Jerry Can Holder |
| PBLHO.2.022 | Floatwater 41L Tank (On Guard) |
| PBLHO.2.023 | Floatwater 65L Tank (On Guard) View Photo |
| PBLHO.2.024 | 100L Water Tank Unit, Filler and Hand Pump |
| PBLHO.2.025 | 12v Pump, 17 AmpHr Battery |
| PBLHO.2.026 | Awnings - Omn4900 2.6 x 2.5 Blue or Grey View Photo |
| PBLHO.2.027 | Awnings - Omn4900 3.0 x 2.5 Blue or Grey |
| PBLHO.2.028 | Awnings - Omn4900 3.5 x 2.5 Blue or Grey |
| PBLHO.2.029 | Awnings - Omn4900 4.0 x 2.5 Blue or Grey |
| PBLHO.2.030 | Awnings - Omn4900 4.5 x 2.5 Blue or Grey |
| PBLHO.2.031 | Upgrade ATM from 2T to 2.49T Incl. 4 Wheel Brakes/Brakesafe Unit |
| PBLHO.2.032 | Drawbar Brake Controller 12v |
| PBLHO.2.033 | Drawbar Infill Aluminum Checkerplate |
| PBLHO.2.034 | Portable Yards, Set of 8, Mounted View Photo |
| PBLHO.2.035 | Hay Rack and Ladder View Photo |
| PBLHO.2.036 | Gig Hooks (Set) |
| PBLHO.2.037 | Feed Bucket on Mudguard View Photo |
| PBLHO.2.038 | Animat - 10mm Thick. Polymerically Bound Rubber per Sq Mt |
| PBLHO.2.039 | Axles & Load Sharing Rocker Roller Suspension in Lieu of Independent Susp. |
| PBLHO.2.040 | PBL Kitchenette - Bench, Sink, Under Cupboard |
| PBLHO.2.041 | PBL Overhead Cupboards |
| PBLHO.2.042 | Bar Fridge 100Lt. 240v. W500 x H850 x D500 |
| PBLHO.2.043 | Microwave 25L Stainless Steel - W483 x D396 x H281 View Photo |
| PBLHO.2.044 | 240v Power - Switchboard , RCD Protection, 15AMP Inlet , 2 x Double GPO |
