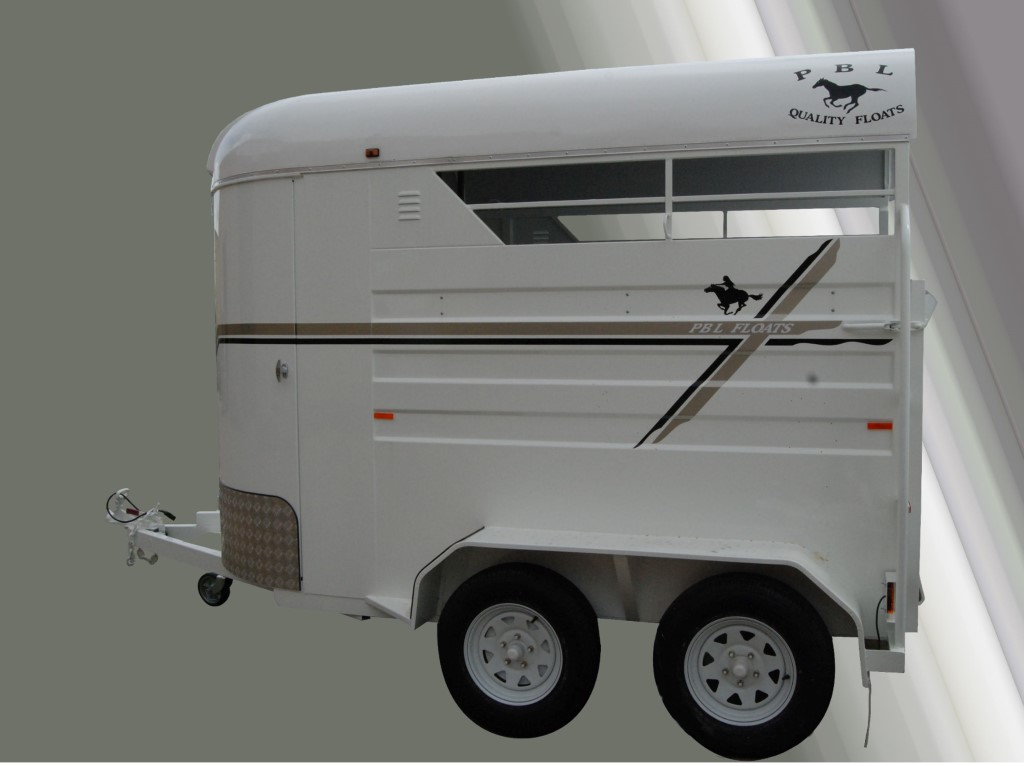

Standard S Model Double Floats
This double float features two wheel electric brakes to ensure the safety of the animals traveling in them. With an independent torsion rubber suspension, and spring assisted tailgate, this is a vehicle that was produced with safety and comfort of the horses that use it.
There are internal and external tie points to better secure the animals, while standard safety features like the side padding, rump bar, chest bar, and other essentials are all included. Additionally, rubber matting to ensure the safe movement of the animals is located on the floor, while LED lighting allows both you and the animals the ability to see when you are loading and unloading them.
- Reference No:
- 952
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Float
- S Model
- Stripping
- Tandem Axle
- White
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | 3300mm x 1670mm x 2100mm |
| ATM | 2000Kg |
| Bay Length | 1950 mm x 780mm |
| Finish | Etch Prime and Two Pac White Paint |
| Inclusions | Two Wheel Electric Brakes (In Cab. Control) Independent Torsion Rubber Suspension Open Sided Drawbar Infill Algal and Duragal Steel Chassis & Frame Zincaneal Sheet Panels Structural Hardwood Ply G2 F27 Flooring - Sealed Insertion Rubber Matting - Sealer/Adhesive One Piece Fiberglass Roof LED Lights to ADRs - Rear Combo STI (100x100) LED Lights to ADRs - 2 x Number Plate Lights LED Lights to ADRs - 1 pair Red Amber Lights Interior Dome LED Light c/w Switch Wired to Float Lights Spring Assisted Tailgate - Ply & Rubber, Ali Wear Strip Colorbond Sheet Finish on Tailgate Internal and External Tie Points Removable Chest Bars, Head & Centre Divider Rump Bars Side Padding Large Front Window Side Access Door - Lockable and Inside Handle Stone Guard 400mm Aluminum Tread Plate Front Curve and Front of Mudguards Wheels 14" Ford Sunrasia Rims, New 185R14LT Tyres x 5. 8" Swivel Jockey Wheel Rated 10mm Double Safety Chain Pre Paint - Prepsol clean, Adhesive/Sealer seal |
| Tare Weight | 820Kg |
| Warranty | 2 Months Conditional Suspension 5 Years Conditional |
| Striping | 2" & 1" |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLHO.1.001 | Extension to 3600mm ATM 2000Kg View Photo |
| PBLHO.1.002 | Extension to 3900mm, Upgrade ATM to 2.49T |
| PBLHO.1.003 | Tack Box in Front (Need Ext.) Door Outside & Inside View Photo |
| PBLHO.1.004 | Swing Saddle Rack (2 Horse) in Tack Box View Photo |
| PBLHO.1.005 | Sliding Window 1000 x 300 - Tinted & Screened (pair) View Photo |
| PBLHO.1.006 | Rotary Roof Vents |
| PBLHO.1.007 | Pop-up Roof Vent View Photo |
| PBLHO.1.008 | Rug Rack (Needs Extension) View Photo |
| PBLHO.1.009 | Rear Barn Doors - Removable |
| PBLHO.1.010 | Rear Door - Lift up - Gas Strutted View Photo |
| PBLHO.1.011 | Rear Dust Covers (White) |
| PBLHO.1.012 | Side Dust Cover (White) View Photo |
| PBLHO.1.013 | Drawbar Brake Controller 12v |
| PBLHO.1.014 | Additional Internal Dome LED Light c/w Switch |
| PBLHO.1.015 | Upgrade ATM 2T to 2.49T incl. 4 Wheel Brakes, Brakesafe |
| PBLHO.1.016 | Stallion Divider |
| PBLHO.1.017 | Kickboards HDPE 9mm View Photo |
| PBLHO.1.018 | Chest Pads View Photo |
| PBLHO.1.019 | Rump Pads View Photo |
| PBLHO.1.020 | Centre Divider Padding View Photo |
| PBLHO.1.021 | Centre Divider Rubber Drop Sheet |
| PBLHO.1.022 | Stoneguard - Ali. Treadplate 600mm in lieu 400mm View Photo |
| PBLHO.1.023 | M’Guard T’Box 1200 x 240 x 560 c/w Shelf, Hinge Down Door View Photo |
| PBLHO.1.024 | Spare Wheel Mount Outside View Photo |
| PBLHO.1.025 | 20Ltr Jerry Can Holder View Photo |
| PBLHO.1.026 | Drawbar Infill Aluminum Checkerplate |
| PBLHO.1.027 | Extra Front Door |
| PBLHO.1.028 | Gig Hook (Set) |
| PBLHO.1.029 | Awning - Omn 4900 2.6x2.5 Blue or Grey View Photo |
| PBLHO.1.030 | Awning - Omn 4900 3.0x2.5 Blue or Grey |
| PBLHO.1.031 | Portable Yard, Set of 8, Mounted View Photo |
| PBLHO.1.032 | Animat - 10mm Thick. Polymerically Bound Rubber per Sq Mt |
| PBLHO.1.033 | New 185/14LT Tyres in lieu of Second Hand |
| PBLHO.1.034 | Float Water 41L Tank (On Guard) View Photo |
| PBLHO.1.035 | Float Water 65L Tank (On Guard) View Photo |
| PBLHO.1.036 | 65L Water Tank Unit, Filler & Hand Pump |
| PBLHO.1.037 | 12v Pump, 17AmpHr Battery, Sink Tap |
| PBLHO.1.038 | Axles & Load Sharing Shackle Rocker Suspension in lieu of Independent Suspension |
| PBLHO.1.039 | PBL Kitchenette - Bench, Sink, Under Cupboards, Fridge Provision |
| PBLHO.1.040 | PBL Overhead Cupboards |
| PBLHO.1.041 | Bar Fridge 100 Lt. 240v. W500 x H850 x D500 |
| PBLHO.1.042 | Microwave 25Lt Stainless Steel - W483 x D396 x H281 |
| PBLHO.1.043 | Feed Bucket on Mudguard View Photo |
| PBLHO.1.044 | Fold up Beds View Photo |
| PBLHO.1.045 | 240v Power - Switchboard, RCD Protection, 15AMP Inlet, 2 x Double GPO |
