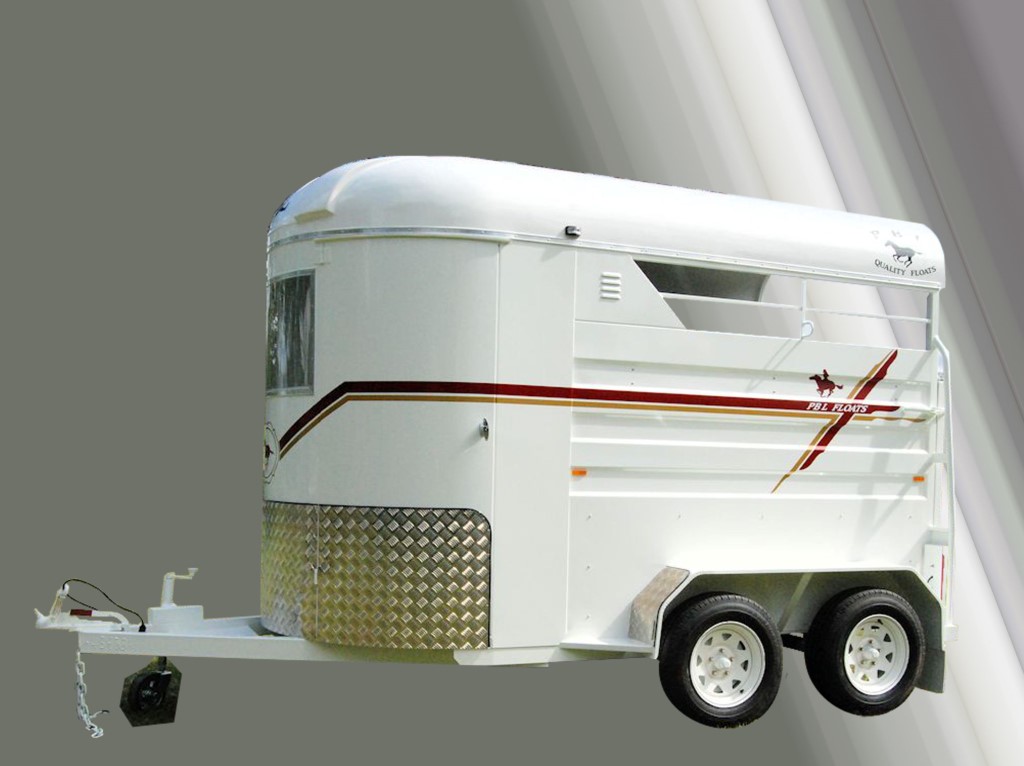

Standard SL Model Double Floats
- Reference No:
- 953
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Float
- SL Model
- Stripping
- Tandem Axle
- White
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | 3300mm x 1670mm x 2100mm |
| ATM | 2000Kg |
| Bay Length | 1950 mm x 780mm |
| Finish | Etch Prime and Two Pac White Paint |
| Inclusions | Two Wheel Electric Brakes (In Cab. Control) Independent Torsion Rubber Suspension Open Sided Drawbar Infill Algal and Duragal Steel Chassis & Frame Zincaneal Sheet Panels Structural Hardwood Ply G2 F27 Flooring - Sealed Insertion Rubber Matting - Sealer/Adhesive One Piece Fiberglass Roof LED Lights to ADRs - Rear Large Combo STI LED Lights to ADRs - 2 x Number Plate Lights LED Lights to ADRs - 1pair Red Amber Lights Interior Dome LED Light c/w Switch Wired to Float Lights Spring Assisted Tailgate - Ply & Rubber, Ali Wear Strip Colorbond Sheet Finish on Tailgate Internal and External Tie Points Removable Chest Bars, Head & Centre Divider Rump Bars Side, Chest and Divider Padding Kickboard - HDPE Black Large Front Window Side Access Door - Lockable and Inside Handle Stone Guard 600mm Aluminum Tread Plate Front Curve and Front of Mudguards Wheels 14" Ford Sunrasia Rims, New 185R14LT Tyres x 5 8" Swivel Jockey Wheel Rated 10mm Double Safety Chain Pre Paint - Prepsol Clean, Adhesive/Sealer Seal |
| Tare Weight | 840Kg |
| Warranty | 12 Months Conditional Suspension 5 Years Conditional |
| Striping | 2" & 1" |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLHO.1.001 | Extension to 3600mm ATM 2000Kg View Photo |
| PBLHO.1.002 | Extension to 3900mm, Upgrade ATM to 2.49T |
| PBLHO.1.003 | Tack Box in Front (Need Ext.) Door Outside & Inside View Photo |
| PBLHO.1.004 | Swing Saddle Rack (2 Horse) in Tack Box View Photo |
| PBLHO.1.005 | Sliding Window 1000 x 300 - Tinted & Screened (pair) View Photo |
| PBLHO.1.006 | Rotary Roof Vents |
| PBLHO.1.007 | Pop-up Roof Vent View Photo |
| PBLHO.1.008 | Rug Rack (Needs Extension) View Photo |
| PBLHO.1.009 | Rear Barn Doors - Removable |
| PBLHO.1.010 | Rear Door - Lift up - Gas Strutted View Photo |
| PBLHO.1.011 | Rear Dust Covers (White) |
| PBLHO.1.012 | Side Dust Cover (White) View Photo |
| PBLHO.1.013 | Drawbar Brake Controller 12v |
| PBLHO.1.014 | Additional Internal Dome LED Light c/w Switch |
| PBLHO.1.015 | Upgrade ATM 2T to 2.49T incl. 4 Wheel Brakes, Brakesafe |
| PBLHO.1.016 | Stallion Divider |
| PBLHO.1.017 | Kickboards HDPE 9mm View Photo |
| PBLHO.1.018 | Chest Pads View Photo |
| PBLHO.1.019 | Rump Pads View Photo |
| PBLHO.1.020 | Centre Divider Padding View Photo |
| PBLHO.1.021 | Centre Divider Rubber Drop Sheet |
| PBLHO.1.022 | Stoneguard - Ali. Treadplate 600mm in lieu 400mm View Photo |
| PBLHO.1.023 | M’Guard T’Box 1200 x 240 x 560 c/w Shelf, Hinge Down Door View Photo |
| PBLHO.1.024 | Spare Wheel Mount Outside View Photo |
| PBLHO.1.025 | 20Ltr Jerry Can Holder View Photo |
| PBLHO.1.026 | Drawbar Infill Aluminum Checkerplate |
| PBLHO.1.027 | Extra Front Door |
| PBLHO.1.028 | Gig Hook (Set) |
| PBLHO.1.029 | Awning - Omn 4900 2.6x2.5 Blue or Grey View Photo |
| PBLHO.1.030 | Awning - Omn 4900 3.0x2.5 Blue or Grey |
| PBLHO.1.031 | Portable Yard, Set of 8, Mounted View Photo |
| PBLHO.1.032 | Animat - 10mm Thick. Polymerically Bound Rubber per Sq Mt |
| PBLHO.1.033 | New 185/14LT Tyres in lieu of Second Hand |
| PBLHO.1.034 | Float Water 41L Tank (On Guard) View Photo |
| PBLHO.1.035 | Float Water 65L Tank (On Guard) View Photo |
| PBLHO.1.036 | 65L Water Tank Unit, Filler & Hand Pump |
| PBLHO.1.037 | 12v Pump, 17AmpHr Battery, Sink Tap |
| PBLHO.1.038 | Axles & Load Sharing Shackle Rocker Suspension in lieu of Independent Suspension |
| PBLHO.1.039 | PBL Kitchenette - Bench, Sink, Under Cupboards, Fridge Provision |
| PBLHO.1.040 | PBL Overhead Cupboards |
| PBLHO.1.041 | Bar Fridge 100 Lt. 240v. W500 x H850 x D500 |
| PBLHO.1.042 | Microwave 25Lt Stainless Steel - W483 x D396 x H281 |
| PBLHO.1.043 | Feed Bucket on Mudguard View Photo |
| PBLHO.1.044 | Fold up Beds View Photo |
| PBLHO.1.045 | 240v Power - Switchboard, RCD Protection, 15AMP Inlet, 2 x Double GPO |
