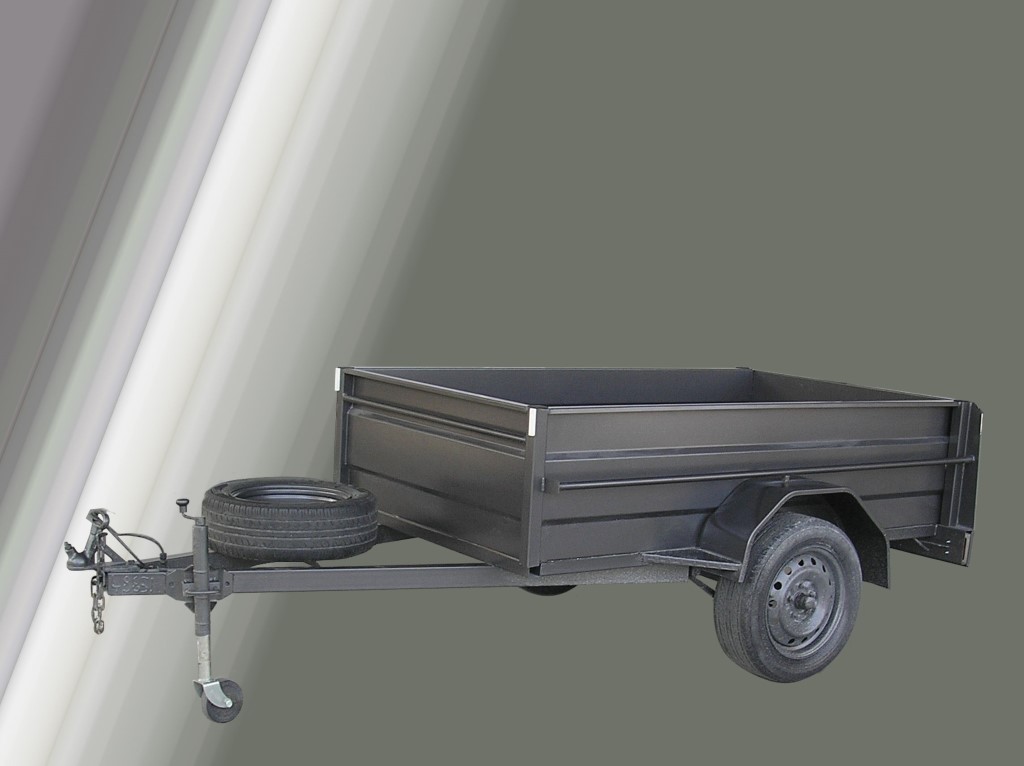

Standard High Sided Extra Heavy Duty
- Reference No:
- 876
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Grey/Charcoal
- Single Axle
- Trailer
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.1.0015 - 1800x1200 (6x4) PBLT.1.0016 - 2100x1200 (7x4) PBLT.1.0017 - 2400x1200 (8x4) PBLT.1.0018 - 2100x1500 (7x5) PBLT.1.0019 - 2400x1500 (8x5) |
| ATM | 750 Kg |
| Axle | 39mm Round LM |
| Body | Panels Ribbed 510mm High Rear Tailgate |
| Chassis | Drawbar - 75x50x2mm RHS Cross Runner - 50x50x2mm (6x4 - 2) Cross Runner - 50x50x2mm (Others - 3) Side Runner -50x50x2mm (Full Length) Front Cross Runner - 50x50x2mm |
| Corner Post | 50x50x2mm Front (Capped Bottom) & Rear |
| Coupling | Quick Release 50mm Adjustable |
| Finish | Etch Prime & Hammertone / Enamel Top Coat |
| Floor | Checkerplate 2.1mm |
| Hubs and Bearings | 5 Stud LM |
| Safety Chain | 8mm Rated Single |
| Structural Capacity | 1100 Kg |
| Suspension | 6 Leaf 45x6.5mm Slipper |
| Tie Rail | 20nb Pipe - Front, Rear & Sides |
| Wheels | 14"/15" Second Hand Rims & Tyres + Spare |
| Common Articles | Lynch Pins & Bullets to Secure Tailgate Lights in Rear Channel 12v Lights to ADRs Mudguard Support Front & Rear - C/Plate Folded Plug Holder Spare Carrier 6" Swivel Jockey Wheel |
