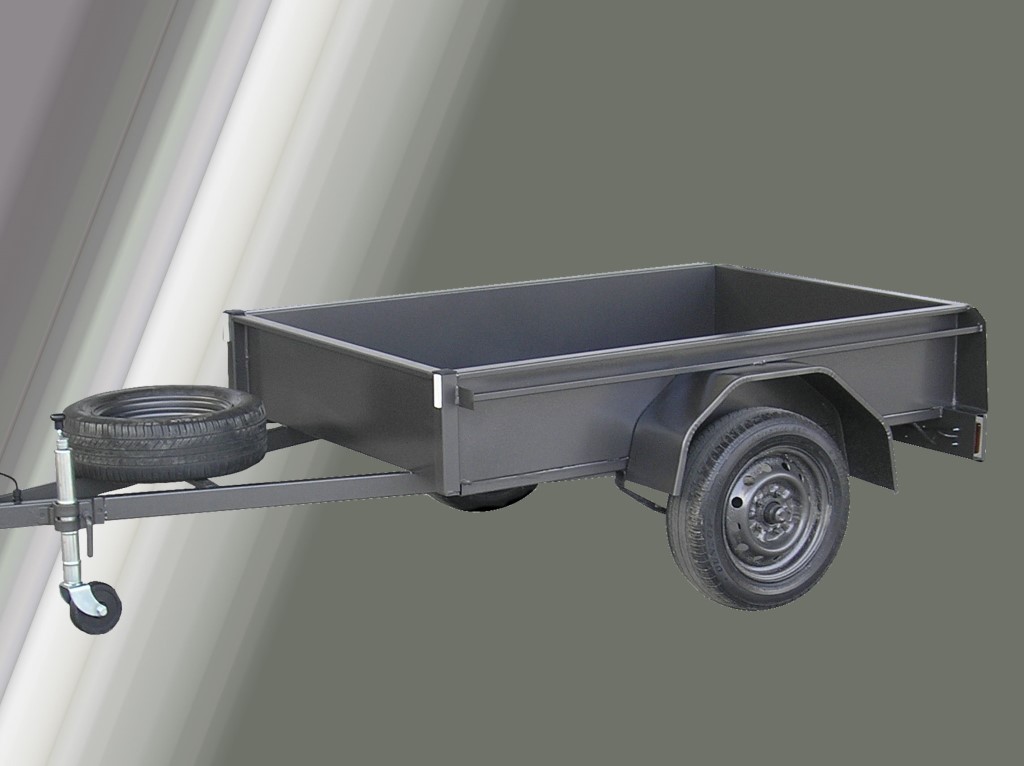

Standard Medium Duty
- Reference No:
- 877
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Grey/Charcoal
- Single Axle
- Trailer
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.1.0001 - 1500x900 (5x3) PBLT.1.0002 - 1500x1070 (5x3 1/2) PBLT.1.0003 - 1800X1200 (6x4) |
| ATM | 750 Kg |
| Axle | 39mm Round LM |
| Body | Panels Flat 310mm High Rear Tailgate |
| Chassis | Drawbar - 65x35x2mm SHS Cross Runner - 35x35x2mm SHS Side Runner - 35x35x2mm SHS |
| Corner Post | 50x50x2mm Front Only |
| Coupling | Quick Release 50mm Adjustable |
| Finish | Etch Prime & Hammertone / Enamel Top Coat |
| Floor | Flat 1.6mm Sheet |
| Hubs and Bearings | 5 Stud LM |
| Safety Chain | 8mm Rated Single |
| Structural Capacity | 750Kg |
| Suspension | 4 Leaf 45x6.5mm Slipper |
| Tie Rail | 20x20x1.6mm SHS - Sides Only |
| Wheels | 14"/15" Second Hand Rims & Tyres + Spare |
| Common Articles | Lynch Pins & Bullets to Secure Tailgate Lights in Back Channel 12v Lights to ADRs Plug Holder Spare Carrier 6" Jockey Wheel & Clamp |
