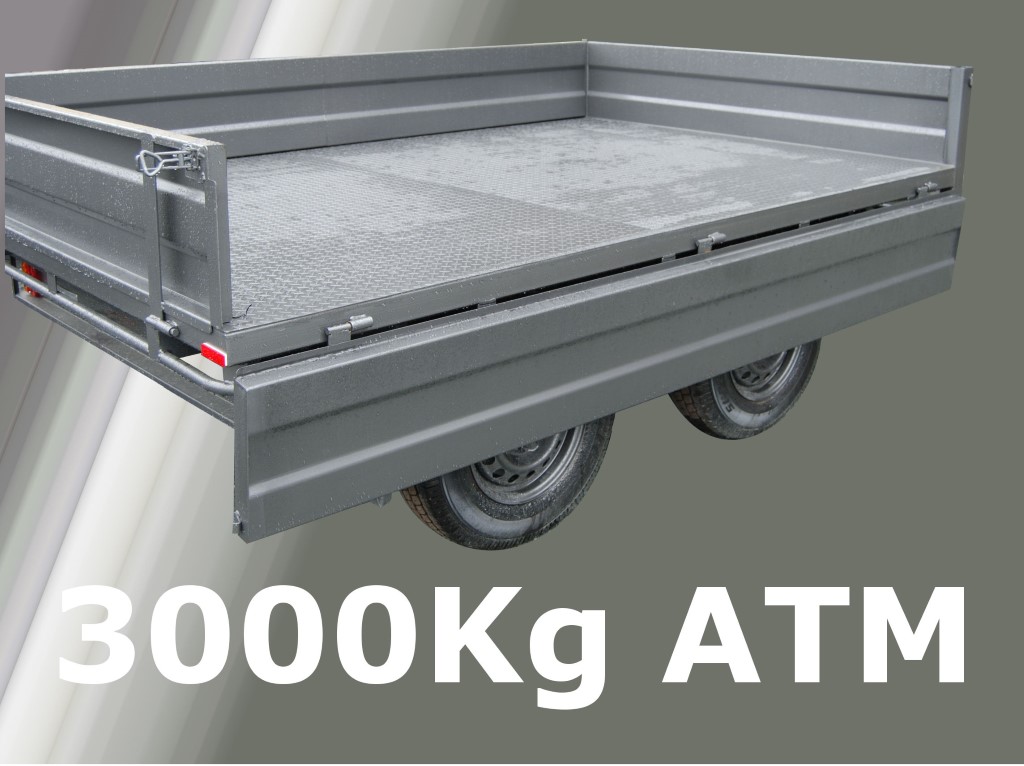

Standard 3.0T, Tandem Axle Box Trailer with Wheels Under and Drop Sides
- Reference No:
- 886
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Drop Sides
- Grey/Charcoal
- Tandem Axle
- Trailer
- Wheels Under
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.3.0015 - 2400x1800(8X6 PBLT.3.0016 - 2700x1800(9x6) PBLT.3.0017 - 3000x1800(10x6) PBLT.3.0018 - 3600x1800(12x6) PBLT.3.0019 - 3600x2400(12x8) PBLT.3.0020 - 4200x1800(13'8x6) PBLT.3.0021 - 4200x2400(13'8x8) |
| ATM | 3000 Kg |
| Axle | 45mm Round S/L |
| Body | Panels Ribbed 310mm High Fixed Front Drop Sides & Rear |
| Brakes | 10" Electric Both Axles (In Cab) Park Brake & Brake-Safe - Battery Breakaway |
| Chassis | Bottom - 75x50x3 Trussed Top - 65x35x3 (Outside) 65x35x2 (Inside) Draw Bar - 100x50x4 |
| Coupling | Electric Coupling 50mm |
| Finish | Etch Prime & Hammertone / Enamel Top Coat |
| Floor | Checkerplate 2.1mm |
| Hubs and Bearings | 5 Stud Ford, S/L |
| Safety Chain | 10mm Double |
| Structural Capacity | 3000 Kg |
| Suspension | 6 Leaf 48x8mm Shackle Rocker |
| Wheels | 14" Sunrasia Ford & New 185R14LT Tyre + New Spare |
| Rope Rail | 20nb Pipe - Front, Rear & Sides |
| Common Articles | Overcentre Catch to Secure Gates Lights in Rear Channel LED Lights Plug Holder Spare Carrier 8" HD Swivel |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.3.0001 | FARM TUFF: Upgrade Structural Capacity from 2000kg to 2500kg, Drawbar: 100 x 50 x 3mm, Rocker Roller Suspension 60 x 6.5mm 7 Leaf, Side & Front Runners: 50 x 50 x 3mm, Cross Runners: 50 x 50 x 2mm, Checker Plate Mudguards, Steel Encased Wiring, 10mm Doubl |
| Code | Details |
|---|---|
| PBLO.4.0001 | Fixed Head Board (One Rail) 1200 High |
| PBLO.4.0002 | Fixed Head Board (Three Rails) 1200 High |
| PBLO.4.0003 | Coaming Rail |
