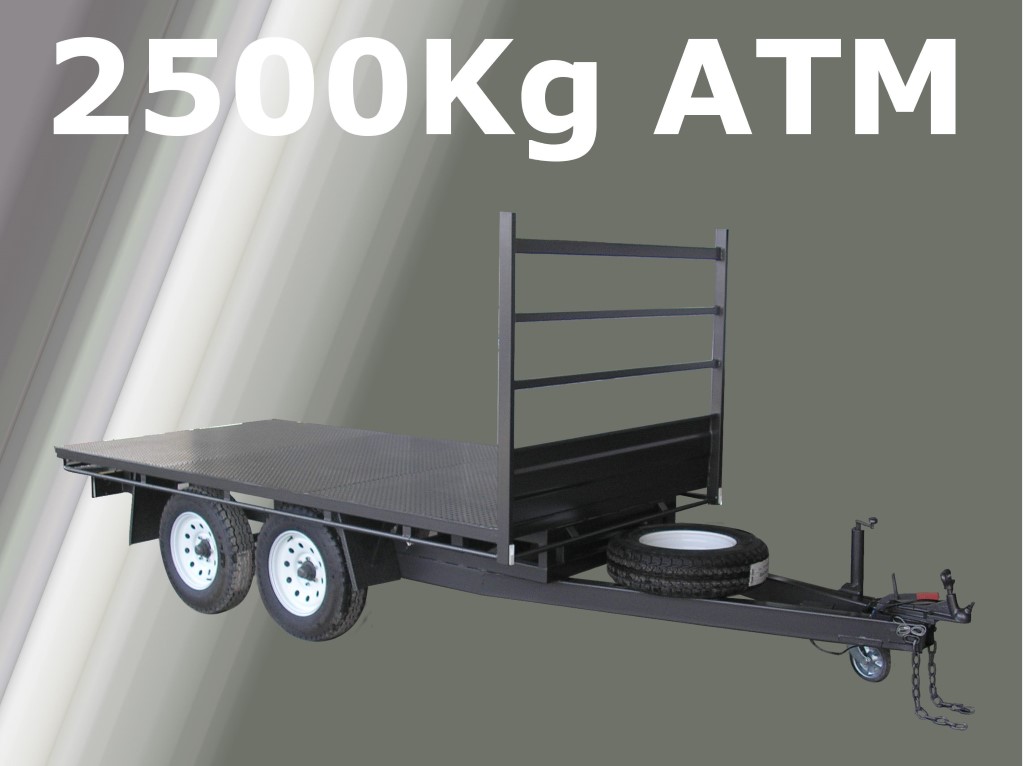

Standard 2.5T, Tandem Axle Box Trailer with Wheels Under and Flat Top
- Reference No:
- 891
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Grey/Charcoal
- Tandem Axle
- Trailer
- Wheels Under
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.4.0008 - 2400x1800(8x6) PBLT.4.0009 - 2700x1800(9x6) PBLT.4.0010 - 3000x1800(10x6) PBLT.4.0011 - 3600x1800(12x6) PBLT.4.0012 - 3600x1800(12x6) PBLT.4.0013 - 4200x1800(13'8x6) PBLT.4.0014 - 4200x2400(13'8x8) |
| ATM | 2500 Kg |
| Axle | 45mm Round Solid S1040 |
| Brakes | 10" Electric Both Axles (In Cab) Park Brake & Brake-Safe - Breakaway |
| Chassis | Bottom - 75x50x3 Trussed Top - 65x35x2 Draw Bar - 100x50x3 |
| Coupling | Electric Coupling 50mm |
| Finish | Etch Prime & Hammertone / Enamel Top Coat |
| Floor | Checkerplate 2.1mm |
| Hubs and Bearings | 5 Stud SL |
| Safety Chain | 10mm Rated Double |
| Structural Capacity | 2500 Kg |
| Suspension | 5 Leaf 45x8mm Shackle Rocker |
| Wheels | 14" Second Hand Rims & New 185R14LT Tyres & Spare S/H |
| Rope Rail | 20nb Pipe - Front, Rear & Sides |
| Common Articles | Lights in Rear Channel LED Lights Plug Holder Spare Carrier 8" Swivel Jockey Wheel |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.3.0001 | FARM TUFF: Upgrade Structural Capacity from 2000kg to 2500kg, Drawbar: 100 x 50 x 3mm, Rocker Roller Suspension 60 x 6.5mm 7 Leaf, Side & Front Runners: 50 x 50 x 3mm, Cross Runners: 50 x 50 x 2mm, Checker Plate Mudguards, Steel Encased Wiring, 10mm Doubl |
| Code | Details |
|---|---|
| PBLO.4.0003 | Coaming Rail |
| PBLO.4.0004 | Fixed Head Board (One Rail) 1200 High & Front Panel |
| PBLO.4.0005 | Fixed Head Board (Three Rails) 1200 High & Front Panel |
| PBLO.4.0006 | Fixed Front Panel 300 High |
Make an Enquiry
If you are interested in this item (or any others) and would like more information, why not contact us on the phone number or enquiry form below.
(07) 3271 1744
