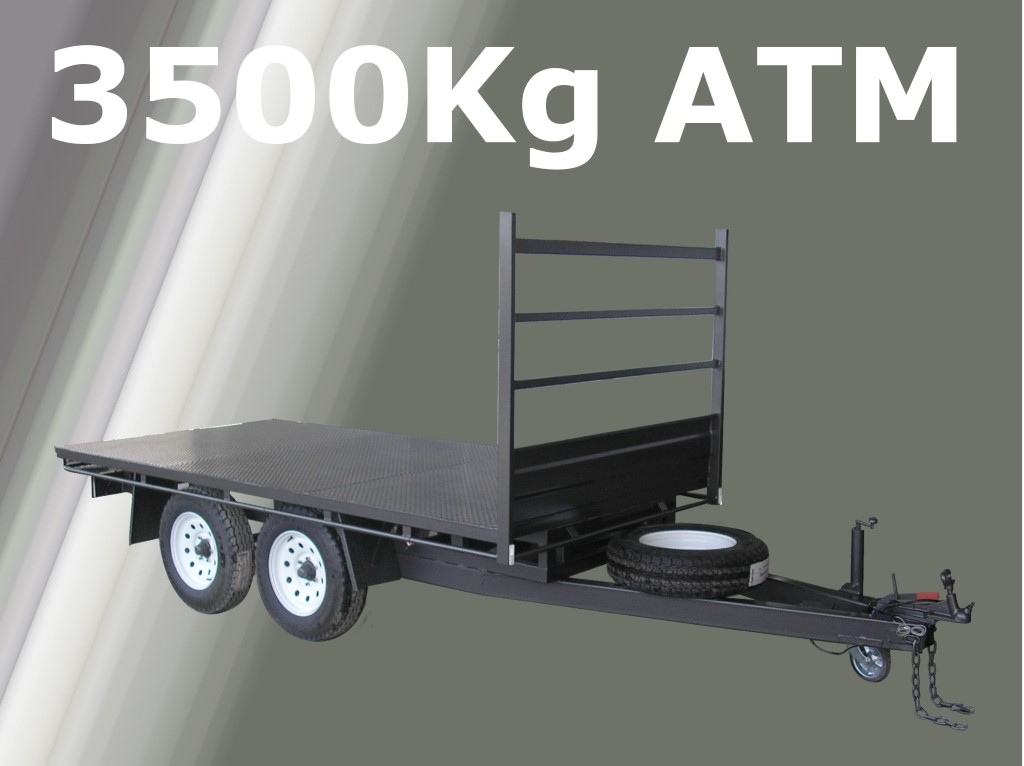

Standard 3.5T, Tandem Axle Box Trailer with Wheels Under and Flat Top
- Reference No:
- 893
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Grey/Charcoal
- Tandem Axle
- Trailer
- Wheels Under
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.3.0022 - 2400x1800(8x6) PBLT.3.0023 - 2700x1800(9x6) PBLT.3.0024 - 3000x1800(10x6) PBLT.3.0025 - 3600x1800(12x6) PBLT.3.0026 - 3600x1800(12x8) PBLT.3.0027 - 4200x1800(13'8x6) PBLT.3.0028 - 4200x2400(13'8x8) |
| ATM | 3500 Kg |
| Axle | 45 Square Solid S1040 Parallel |
| Brakes | 10" Electric Both Axles (In Cab) Brake-Safe - Battery Breakaway |
| Chassis | Bottom - 75x50x3 Trussed Top - 65x35x3 Draw Bar - 125x75x4 |
| Coupling | Electric Coupling 50mm |
| Finish | Etch Prime & Hammertone / Enamel Top Coat |
| Floor | Checkerplate 3.0mm |
| Hubs and Bearings | 6 Stud, Parallel |
| Safety Chain | 10mm Rated Double c/w Compensating Plates |
| Structural Capacity | 3500 Kg |
| Suspension | 60x6.5mm 7L Rocker Roller |
| Wheels | 16" 6 Stud Sunrasia New 205R16 Tyres & New Spare |
| Rope Rail | 20nb Pipe - Front, Rear & Sides |
| Common Articles | Lights in Rear Channel L.E.D. Lights Plug Holder Spare Carrier - Double Bolt 10" Heavy Duty Jockey Wheel |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.3.0001 | FARM TUFF: Upgrade Structural Capacity from 2000kg to 2500kg, Drawbar: 100 x 50 x 3mm, Rocker Roller Suspension 60 x 6.5mm 7 Leaf, Side & Front Runners: 50 x 50 x 3mm, Cross Runners: 50 x 50 x 2mm, Checker Plate Mudguards, Steel Encased Wiring, 10mm Doubl |
| Code | Details |
|---|---|
| PBLO.4.0003 | Coaming Rail |
| PBLO.4.0004 | Fixed Head Board (One Rail) 1200 High & Front Panel |
| PBLO.4.0005 | Fixed Head Board (Three Rails) 1200 High & Front Panel |
| PBLO.4.0006 | Fixed Front Panel 300 High |
Make an Enquiry
If you are interested in this item (or any others) and would like more information, why not contact us on the phone number or enquiry form below.
(07) 3271 1744
