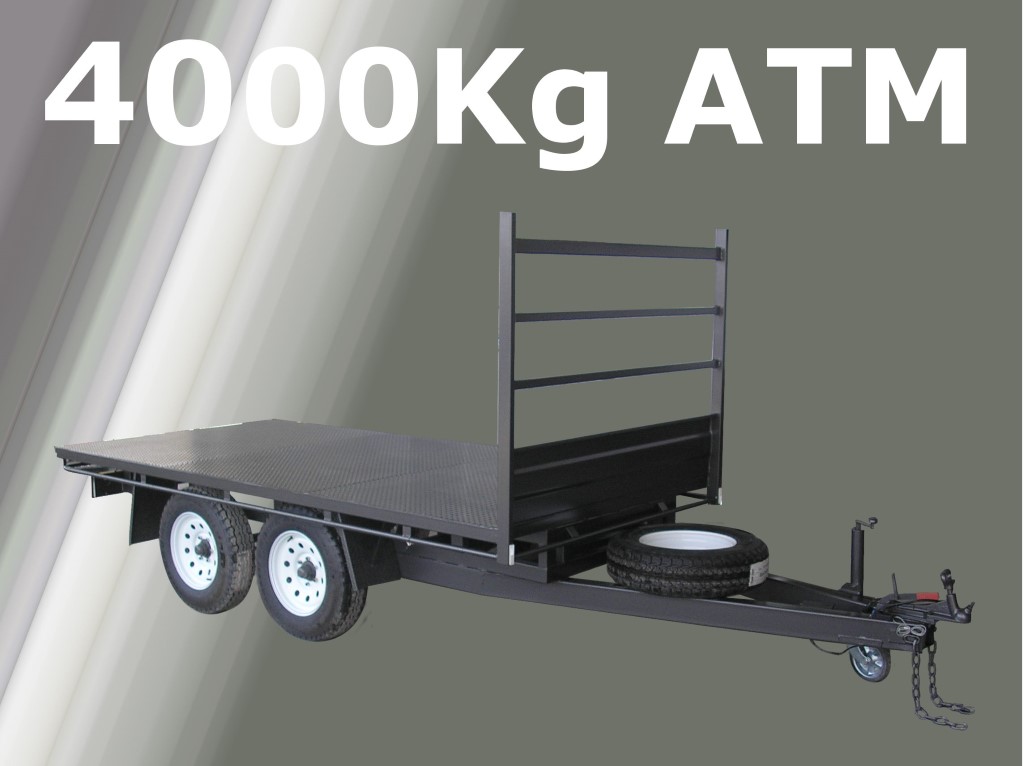

Standard 4.0T, Tandem Axle Box Trailer with Wheels Under and Flat Top
- Reference No:
- 894
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Grey/Charcoal
- Tandem Axle
- Trailer
- Wheels Under
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.4.0029 - 2400x1800(8x6) PBLT.4.0030 - 2700x1800(9x6) PBLT.4.0031 - 3000x1800(10x6) PBLT.4.0032 - 3600x1800(12x6) PBLT.4.0033 - 3600x1800(12x8) PBLT.4.0034 - 4200x1800(13'8x6) PBLT.4.0035 - 4200x2400(13'8x8) |
| ATM | 4000 Kg |
| Axle | 55 Round 2T |
| Body | Panels Ribbed 310mm High Fixed Front Drop Sides & Rear 40x40mm SHS Under Lip |
| Brakes | 12" Electric Both Axles (In Cab) Park Brake Lever & Brake-Safe - Battery Breakaway |
| Chassis | Bottom - 75x50x3 Trussed Top - 65x35x3 Draw Bar - 125x75x4 & Webbing |
| Coupling | Fixed Ring 75mm |
| Finish | Etch Prime & Hammertone / Enamel Top Coat |
| Floor | Checkerplate 3mm |
| Hubs and Bearings | 6 Stud, 2T. |
| Safety Chain | 8mm High Tensile Double |
| Structural Capacity | 4000 Kg |
| Suspension | 60x6.5mm 8L Rocker Roller |
| Wheels | 16" 6 Stud Sunrasia & New 205R16 Tyre + New Spare |
| Rope Rail | 20nb Pipe - Front, Rear & Sides |
| Common Articles | Lights in Rear Channel LED Lights Plug Holder Spare Carrier - Double Bolt 10" Extra Heavy Duty Jockey Wheel |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.3.0001 | FARM TUFF: Upgrade Structural Capacity from 2000kg to 2500kg, Drawbar: 100 x 50 x 3mm, Rocker Roller Suspension 60 x 6.5mm 7 Leaf, Side & Front Runners: 50 x 50 x 3mm, Cross Runners: 50 x 50 x 2mm, Checker Plate Mudguards, Steel Encased Wiring, 10mm Doubl |
| Code | Details |
|---|---|
| PBLO.4.0003 | Coaming Rail |
| PBLO.4.0004 | Fixed Head Board (One Rail) 1200 High & Front Panel |
| PBLO.4.0005 | Fixed Head Board (Three Rails) 1200 High & Front Panel |
| PBLO.4.0006 | Fixed Front Panel 300 High |
