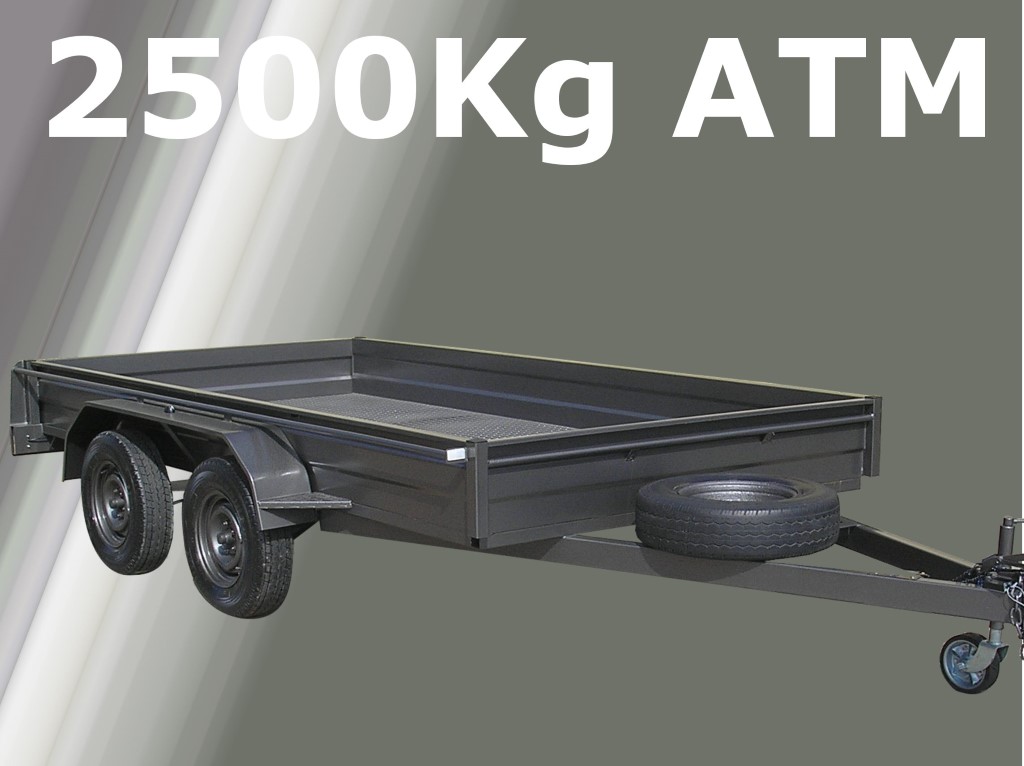

Standard 2.5T, Tandem Axle, Box Trailer
- Reference No:
- 879
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Grey/Charcoal
- Tandem Axle
- Trailer
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.2.0007 - 2400x1500(8x5) PBLT.2.0008 - 2400x1800(8x6) PBLT.2.0009 - 2700x1500(9x5) PBLT.2.0010 - 2700x1800(9x6) PBLT.2.0011 - 3000x1800(10x6) PBLT.2.0012 - 3600x1800(12x6) |
| ATM | 2500 Kg |
| Axle | 45mm Round |
| Body | Panels Ribbed 310mm High Rear Tailgate |
| Brakes | 10" Electric Both Axles (In Cab) Park Brake & Brake-Safe - Breakaway |
| Chassis | Side Runner - 50x50x3mm Front Cross Runner - 50x50x3mm Cross Runner - 50x50x2mm - (5) 8x5 Cross Runner - 50x50x2mm - (6) 9x5 Cross Runner - 50x50x2mm - (7) 10x6 Cross Runner - 50x50x2mm - (8) 12x6 Drawbar - 100x50x3mm |
| Corner Post | 50x50x2mm Front (Cap Bottom) & Rear |
| Coupling | Electric Coupling 50mm |
| Finish | Etch Prime & Enamel Top Coat |
| Floor | Checkerplate 2.1mm |
| Hubs and Bearings | 5 Stud SL |
| Safety Chain | 10mm Rated Double |
| Structural Capacity | 2500 Kg |
| Suspension | 5 Leaf 45x8mm Shackle Rocker |
| Tie Rail | 20nb Pipe - Front, Rear & Sides |
| Wheels | 14" Second Hand Rims & New 185R14LT Tyres + New Spare |
| Common Articles | Lynch Pins & Bullets to Secure Tailgate Lights in Rear Channel L.E.D. Lights to ADRs Mudguard Support Front & Rear - C/Plate Folded Plug Holder Spare Carrier 8" Swivel Jockey Wheel |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.3.0001 | FARM TUFF: Upgrade Structural Capacity from 2000kg to 2500kg, Drawbar: 100 x 50 x 3mm, Rocker Roller Suspension 60 x 6.5mm 7 Leaf, Side & Front Runners: 50 x 50 x 3mm, Cross Runners: 50 x 50 x 2mm, Checker Plate Mudguards, Steel Encased Wiring, 10mm Doubl |
Make an Enquiry
If you are interested in this item (or any others) and would like more information, why not contact us on the phone number or enquiry form below.
(07) 3271 1744
