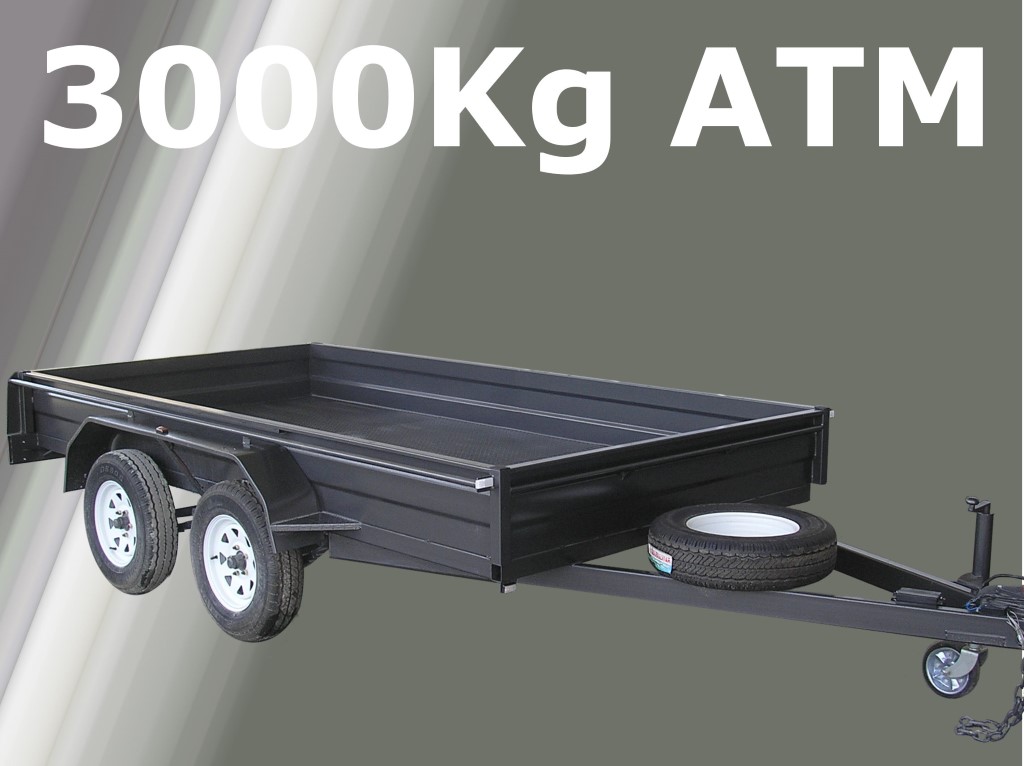

Standard 3.0T, Tandem Axle, Box Trailer
- Reference No:
- 880
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Grey/Charcoal
- Tandem Axle
- Trailer
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.2.0013 - 2400x1500(8x5) PBLT.2.0014 - 2400x1800(8x6) PBLT.2.0015 - 2700x1500(9x5) PBLT.2.0016 - 2700x1800(9x6) PBLT.2.0017 - 3000x1800(10x6) PBLT.2.0018 - 3600x1800(12x6) |
| ATM | 3000 Kg |
| Axle | 45mm Round |
| Body | Panels Ribbed 310mm High Rear Tailgate |
| Brakes | 10" Electric Both Axles (In Cab) Park Brake, Brake-Safe - Breakaway |
| Chassis | Side Runner - 75x50x3mm Front Cross Runner - 75x50x3mm Cross Runner - 65x35x2mm - (5) 8x5 Cross Runner - 65x35x2mm - (6) 9x5 Cross Runner - 65x35x2mm - (7) 10x6 Cross Runner - 65x35x2mm - (8) 12x6 Drawbar - 100x50x4mm |
| Corner Post | 50x50x2mm Front (Capped Bottom) & Rear |
| Coupling | Electric Coupling 50mm |
| Finish | Etch Prime & Enamel Top Coat |
| Floor | Checkerplate 2.1mm |
| Hubs and Bearings | 5 Stud, SL |
| Safety Chain | 10mm Rated Double |
| Structural Capacity | 3000 Kg |
| Suspension | 6 Leaf 45x8mm Shackle Rocker |
| Tie Rail | 20nb Pipe - Front, Rear & Sides |
| Wheels | 14" Sunrasia Ford & New 185R14LT Tyres & New Spare |
| Common Articles | Lynch Pins & Bullets to Secure Tailgate Lights in Rear Channel LED Lights to ADRs Mudguard Support Front & Rear - C/Plate Folded Plug Holder Spare Carrier 8" HD Swivel |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.3.0001 | FARM TUFF: Upgrade Structural Capacity from 2000kg to 2500kg, Drawbar: 100 x 50 x 3mm, Rocker Roller Suspension 60 x 6.5mm 7 Leaf, Side & Front Runners: 50 x 50 x 3mm, Cross Runners: 50 x 50 x 2mm, Checker Plate Mudguards, Steel Encased Wiring, 10mm Doubl |
