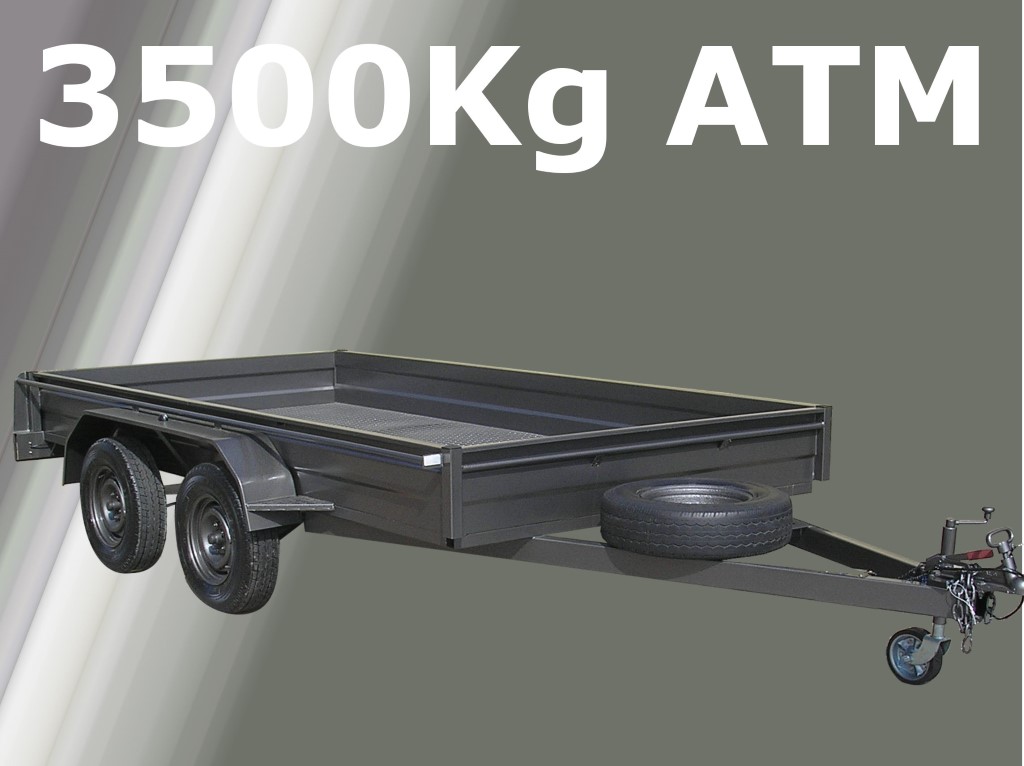

Standard 3.5T, Tandem Axle, Box Trailer
- Reference No:
- 881
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Grey/Charcoal
- Tandem Axle
- Trailer
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.2.0019 - 2400x1500(8x5) PBLT.2.0020 - 2400x1800(8x6) PBLT.2.0021 - 2700x1500(9x5) PBLT.2.0022 - 2700x1800(9x6) PBLT.2.0023 - 3000x1800(10x6) PBLT.2.0024 - 3600x1800(12x6) |
| ATM | 3500 Kg |
| Axle | 45 Square Parallel |
| Body | Panels Ribbed 310mm High Rear Tailgate 40x40mm SHS Under Lip |
| Brakes | 10" Electric Both Axles (In Cab) Park brake & Brake-Safe - Break Away |
| Chassis | Side Runner - 75x50x3mm Front Cross Runner - 75x50x3mm Cross Runner - 75x50x2mm - (5) 8x5 Cross Runner - 75x50x2mm - (6) 9x5 Cross Runner - 75x50x2mm - (7) 10x6 Cross Runner - 75x50x2mm - (8) 12x6 Drawbar - 125x75x4mm |
| Corner Post | 50x50x2mm Front (Capped Bottom) & Rear |
| Coupling | Electric Coupling 50mm |
| Finish | Etch Prime & Hammertone / Enamel Top Coat |
| Floor | Checkerplate 3.0mm |
| Hubs and Bearings | 6 Stud, Parallel |
| Safety Chain | 10mm Rated Double c/w Compensating Plates |
| Structural Capacity | 3500 Kg |
| Suspension | 60x6.5mm 7L Rocker Roller |
| Tie Rail | 20nb Pipe - Front, Rear & Sides |
| Wheels | 16" 6 Stud Sunrasia & New 205R16 Tyres & New Spare |
| Common Articles | Lynch Pins & Bullets to Secure Tailgate Lights in Rear Channel - Pressed Checkerplate LED Lights to ADRs Mudguard Support Front & Rear - C/Plate Folded Plug Holder Spare Carrier-Double Bolt 10" Extra Heavy Duty Jockey Wheel |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.3.0001 | FARM TUFF: Upgrade Structural Capacity from 2000kg to 2500kg, Drawbar: 100 x 50 x 3mm, Rocker Roller Suspension 60 x 6.5mm 7 Leaf, Side & Front Runners: 50 x 50 x 3mm, Cross Runners: 50 x 50 x 2mm, Checker Plate Mudguards, Steel Encased Wiring, 10mm Doubl |
Make an Enquiry
If you are interested in this item (or any others) and would like more information, why not contact us on the phone number or enquiry form below.
(07) 3271 1744
