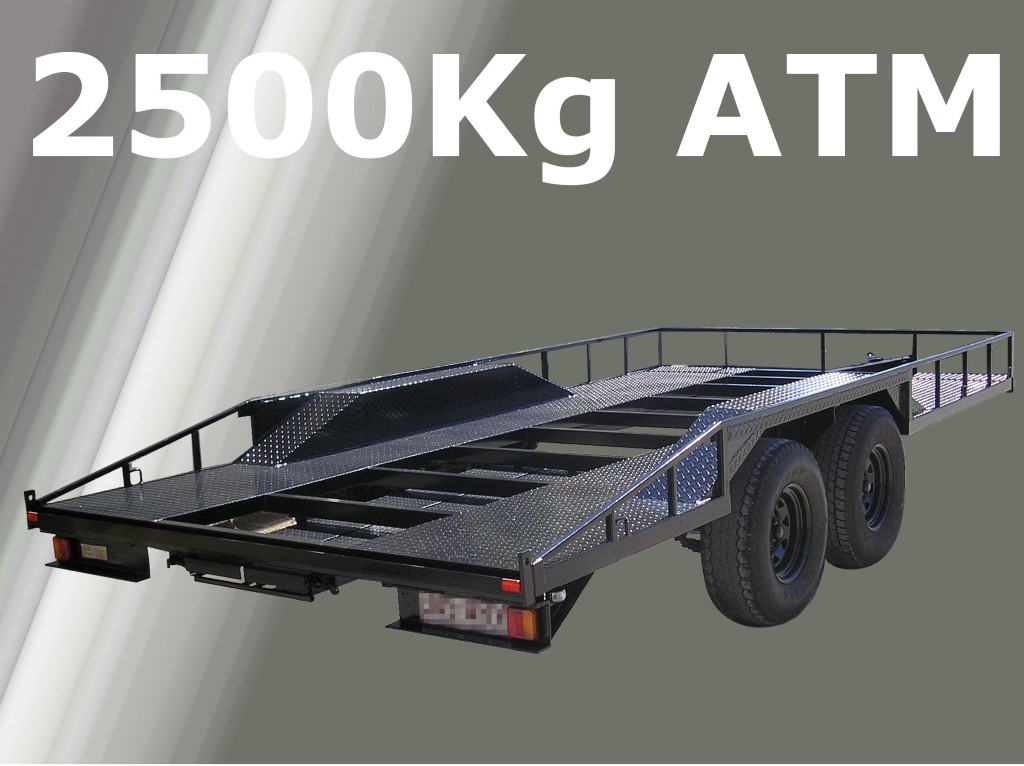

Standard 2.5T, Tandem Axle, Car Carrier
- Reference No:
- 898
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Tandem Axle
- Trailer
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.5.0002 - 4300x2000 |
| ATM | 2500 Kg |
| Axle | 45mm Round S/L |
| Body | Side Rail 50x25x3mm - Taper at Rear U'Bolt Tie Points - (5of.) |
| Brakes | 10" Electric on Both Axles, Park Brake & Brake-Safe - Breakaway |
| Chassis | Side Runner - 75x50x3mm Front Cross Runner - 75x5x3mm Rear Cross Runner - 100x50x3mm Longitudinal Runner - 75x50x2 @ 1000mm Cent. Noggin - 65x35x2mm Drawbar - 100x50x3mm Front Stop - 75x50x3mm |
| Coupling | Electric Brake Coupling 50mm |
| Finish | Etch Prime & Hammertone / Enamel Top Coat |
| Floor | Checkerplate 2.1mm |
| Hubs and Bearings | 5 Stud SL |
| Ramps | 1500 x 600 Angle Runners, Hinged Locking Arm |
| Safety Chain | 10mm Rated Double |
| Structural Capacity | 2500 Kg |
| Suspension | 5 Leaf 45x8mm Shackle Rocker |
| Wheels | 14" Second Hand Rims & New 185R14lt Tyres & Spare S/H |
| Common Articles | Lights on Rear Gusset LED Lights Angle Mudguard Support Plug Holder Spare Carrier 8" Swivel Jockey Wheel |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.5.0001 | Full Checkerplate Floor 4000 x 2000 "Stock Car" |
| PBLO.5.0002 | Manual Tilt |
| PBLO.5.0003 | Mount for Winch |
Make an Enquiry
If you are interested in this item (or any others) and would like more information, why not contact us on the phone number or enquiry form below.
(07) 3271 1744
