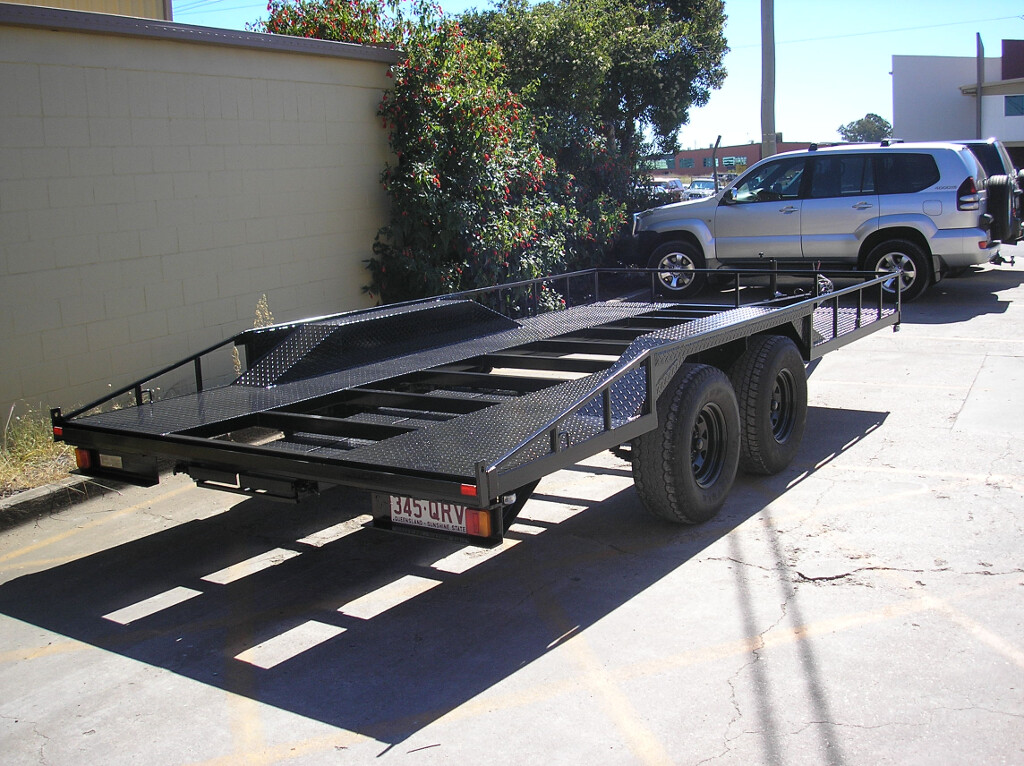

Standard 3.0T, Tandem Axle, Car Carrier
- Reference No:
- 585
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Tandem Axle
- Trailer
- Wheels Under
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.5.0003 - 5000 x 2000 |
| ATM | 3000 Kg |
| Axle | 45mm Square Parallel |
| Body | Side Rail 50x25x3mm - Tapered Rear U'Bolt Tie Points - (5of.) |
| Brakes | 10" Electric on Both Axle Park Brake & Brake-Safe - Breakaway |
| Chassis | Side Runner - 75x50x3mm Front Cross Runner - 75x5x3mm Rear Cross Runner - 100x50x3mm Noggin - 65x35x3mm Longitudinal Runner - 75x50x2 @ 1000mm Centre Drawbar - 125x75x4mm Front Stop 75x50x3mm |
| Coupling | Electric Brake Coupling 50mm |
| Finish | Etch Prime & Hammertone / Enamel Top Coat |
| Floor | Checkerplate 2.1mm |
| Hubs and Bearings | 6 Stud Parallel |
| Ramps | 1500 x 600 Angle Runners, Hinged Locking Arm |
| Safety Chain | 10mm Rated Double |
| Structural Capacity | 3000 Kg |
| Suspension | 6 Leaf 45x8mm Shackle Rocker |
| Wheels | 15" 6 Stud Sunrasia & New 195R15LT Tyres & Spare |
| Common Articles | Lights on Rear Gusset LED Lights Angle Mudguard Support Plug Holder Spare Carrier 8" Heavy Duty Swivel Jockey Wheel |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.5.0001 | Full Checkerplate Floor 4000 x 2000 "Stock Car" |
| PBLO.5.0002 | Manual Tilt |
| PBLO.5.0003 | Mount for Winch |
