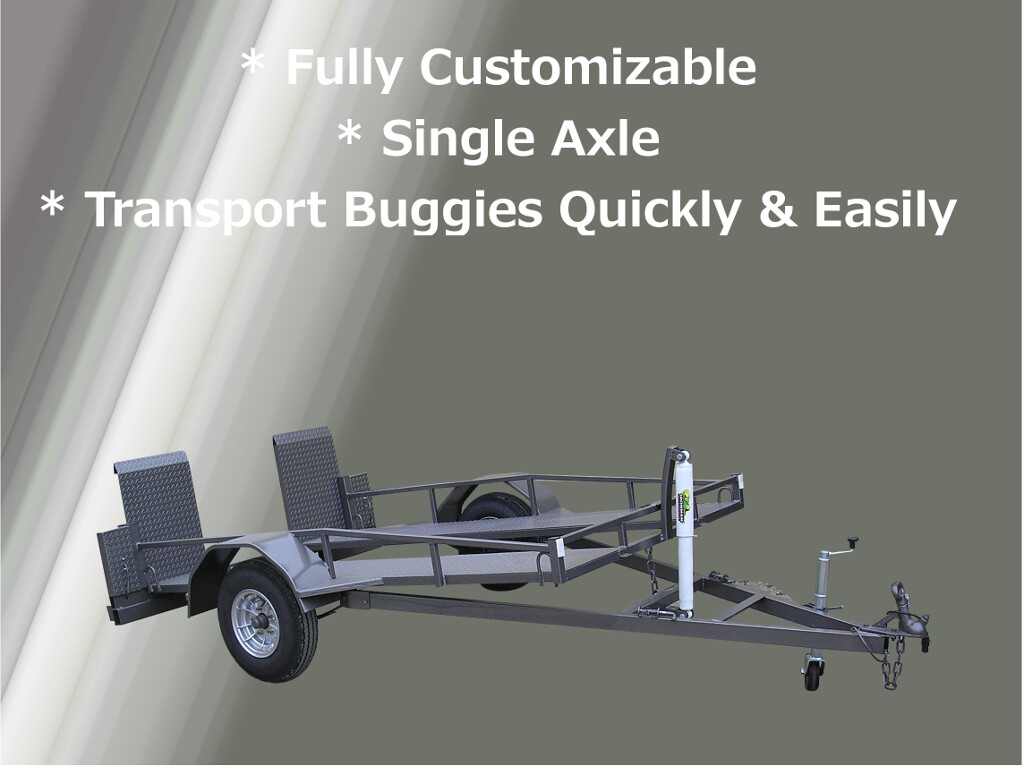

Standard Open Golf Buggy Trailer
- Reference No:
- 904
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Grey/Charcoal
- Ramp
- Single Axle
- Tilting/Tipping
- Trailer
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.7.0001 - 2400x1400 |
| ATM | 750 Kg |
| Axle | 39mm Round LM |
| Body | Floor Tracks - C/Plate 400mm Wide Front & Side Rails - 25x25x2mm 5x U'Bolt Tie Points |
| Chassis | Side Runner - 35x35x2mm Front Cross Runner - 35x35x2mm Rear Cross Runner - 75x50x2mm Drawbar - 65x35x2mm Tilt off Drawbar Dampener Assist Lynch Pin Lock Down |
| Coupling | Quick Release 50mm Adjustable |
| Finish | Etch Prime & Hammertone / Enamel Top Coat |
| Hubs and Bearings | 5 Stud LM |
| Ramps | 600x400 C/Plate Hinged Ramps (1pr) |
| Safety Chain | 8mm Rated Single |
| Structural Capacity | 780 Kg |
| Suspension | 2 Leaf 45x8mm Slipper |
| Wheels | 13" 5 Stud HT Black & New 155R13 Tyres |
| Common Articles | Lights on Rear Gussets 12v Lights to ADRs 6" Swivel Jockey Wheel Mudguard Support Front & Rear - C/Plate Folded Plug Holder Spare Carrier |
Make an Enquiry
If you are interested in this item (or any others) and would like more information, why not contact us on the phone number or enquiry form below.
(07) 3271 1744
