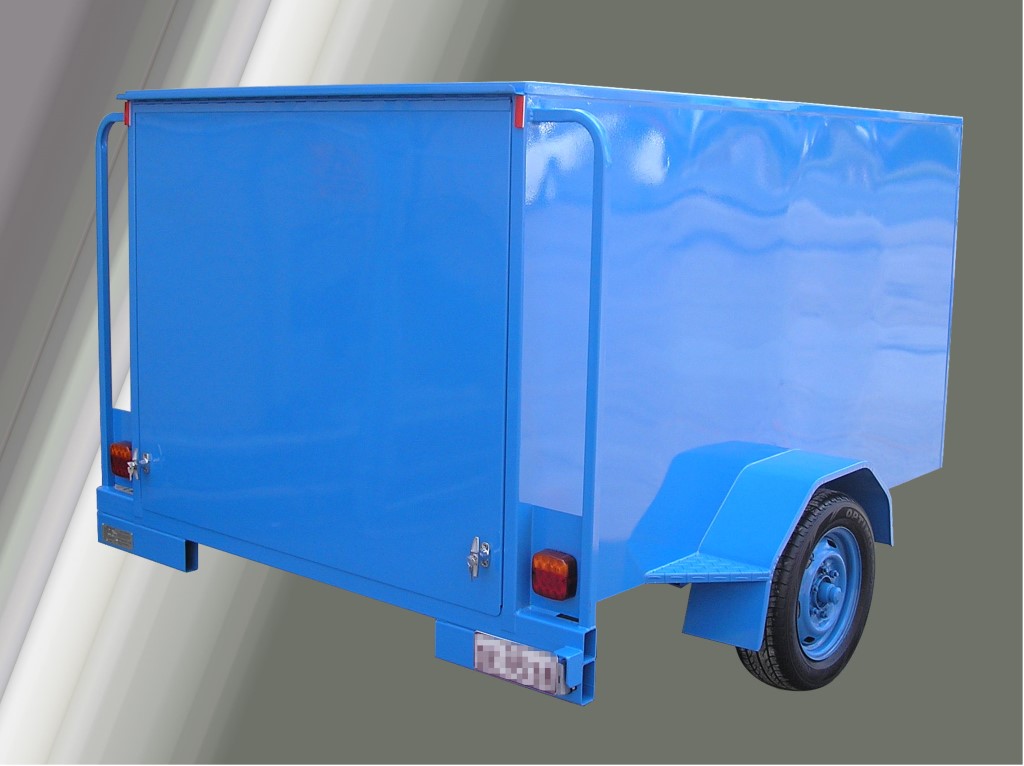

Standard 1150mm High Integral Pantec, 750Kg, Single Axle
- Reference No:
- 905
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Blue
- Single Axle
- Trailer
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.10.0001 - 1800x1200(6x4) PBLT.10.0002 - 2100x1200(7x4) PBLT.10.0003 - 2100x1500(7x5) PBLT.10.0004 - 2400x1200(8x4) PBLT.10.0005 - 2400x1500(8x5) |
| ATM | 750 Kg |
| Axle | 39mm Round LM |
| Body | Checkerplate Floor 2.1mm Flat Zinc Sheeting RHS Frame |
| Chassis | Drawbar - 75x50x3mm RHS Cross Runner - 50x50x2mm (6x4 - 2) Cross Runner - 50x50x2mm (Others - 3) Side Runner - 50x50x2mm Front Cross Runner - 50x50x2mm Rear Cross Runner - 75x50x3mm |
| Coupling | Quick Release 50mm |
| Finish | Etch Prime & Two Pac White |
| Hubs and Bearings | 5 Stud LM |
| Safety Chain | 8mm Rated Single |
| Suspension | 45x8mm 4L Slipper |
| Wheels | 14" Second Hand Rims & New 185R14LT + Spare |
| Rear Door | 1200 - Single Side Hinge, Three-Way Flush Lock 1500 - Double Side Hinge, Three-Way Flush Lock & Inside Spring Bolt |
| Common Articles | Lights In Gussets LED Lights to ADRs Mudguard Support Front & Rear - C/Plate Folded Plug Holder 6" Swivel Jockey Wheel Spare Carrier |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.8.0001 | Spring Assisted Ramp, 4ft Wide in leiu |
| PBLO.8.0002 | Spring Assisted Ramp, 5ft Wide in leiu |
| PBLO.8.0003 | Spring Assisted Ramp 6ft Wide in leiu |
| PBLO.8.0004 | Lift-Up Gas Strut Door, 4ft Wide in leiu |
| PBLO.8.0005 | Lift-Up Gas Strut Door, 5ft Wide in leiu |
| PBLO.8.0006 | Lift-Up Gas Strut Door, 6ft Wide in leiu |
| PBLO.8.0009 | Side Door Lift up c/w Gas Struts & Three-Way Flush Lock |
| PBLO.8.0011 | Truncated Roof 300 x 300 |
| PBLO.8.0012 | Tapered Front, to Drawbar Shape incl. 600 Extension of Body |
| PBLO.8.0013 | Rotary Roof Vent (Ea.) |
| PBLO.8.0014 | Aluminium Stoneguard, 400mm High, Front of Guards |
| PBLO.8.0015 | Internal LED Strip Light at Rear |
