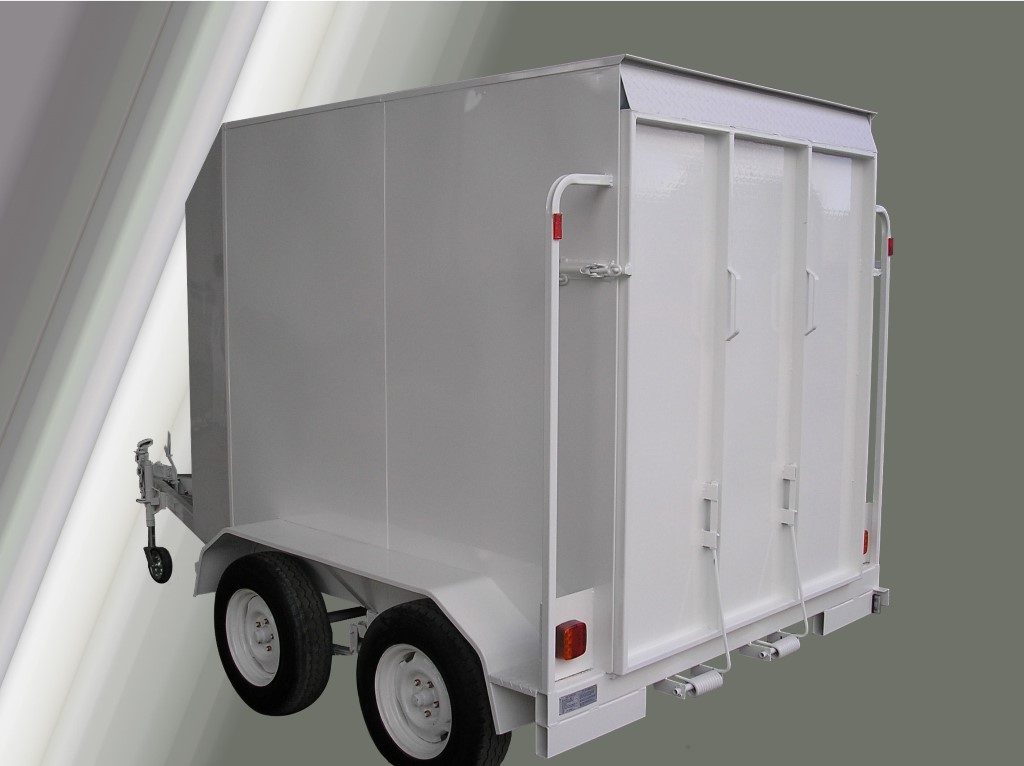

Standard 1450mm High Integral Pantec, 2.0T, Tandem Axle
- Reference No:
- 906
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Tandem Axle
- Trailer
- White
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.10.0013 - 2400x1500(8x5) PBLT.10.0014 - 3000x1800(10x6) PBLT.10.0015 - 3600x1800(12x6) |
| ATM | 2000 Kg |
| Axle | 45mm Round SL |
| Body | Checkerplate Floor 2.1mm Flat Zinc Sheeting RHS Frame |
| Brakes | 10" Mechanical Disc Brakes Ford |
| Chassis | Drawbar - 100x50x3mm Cross Runner - 50x50x2mm Side Runner - 50x50x3mm Front Cross Runner - 50x50x3mm Rear Cross Runner - 75x50x3mm |
| Coupling | Mechanical Override 50mm |
| Finish | Etch Prime & Two Pac White |
| Hubs and Bearings | 5 Stud Ford SL |
| Safety Chain | 10mm Rated Single |
| Suspension | 4 Leaf 45x8mm Shackle Rocker |
| Wheels | 14" Second Hand Rims & New 185R14LT Tyres + Spare S/H |
| Rear Door | Double Side Hinge, Three-Way Flush Lock & Inside Spring Bolt |
| Common Articles | Lights in Gussets LED Lights to ADRs Mudguard Support Front & Rear - C/Plate Folded Plug Holder 8" Swivel Jockey Wheel Spare Carrier |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.8.0001 | Spring Assisted Ramp, 4ft Wide in leiu |
| PBLO.8.0002 | Spring Assisted Ramp, 5ft Wide in leiu |
| PBLO.8.0003 | Spring Assisted Ramp 6ft Wide in leiu |
| PBLO.8.0004 | Lift-Up Gas Strut Door, 4ft Wide in leiu |
| PBLO.8.0005 | Lift-Up Gas Strut Door, 5ft Wide in leiu |
| PBLO.8.0006 | Lift-Up Gas Strut Door, 6ft Wide in leiu |
| PBLO.8.0009 | Side Door Lift up c/w Gas Struts & Three-Way Flush Lock |
| PBLO.8.0011 | Truncated Roof 300 x 300 |
| PBLO.8.0012 | Tapered Front, to Drawbar Shape incl. 600 Extension of Body |
| PBLO.8.0013 | Rotary Roof Vent (Ea.) |
| PBLO.8.0014 | Aluminium Stoneguard, 400mm High, Front of Guards |
| PBLO.8.0015 | Internal LED Strip Light at Rear |
