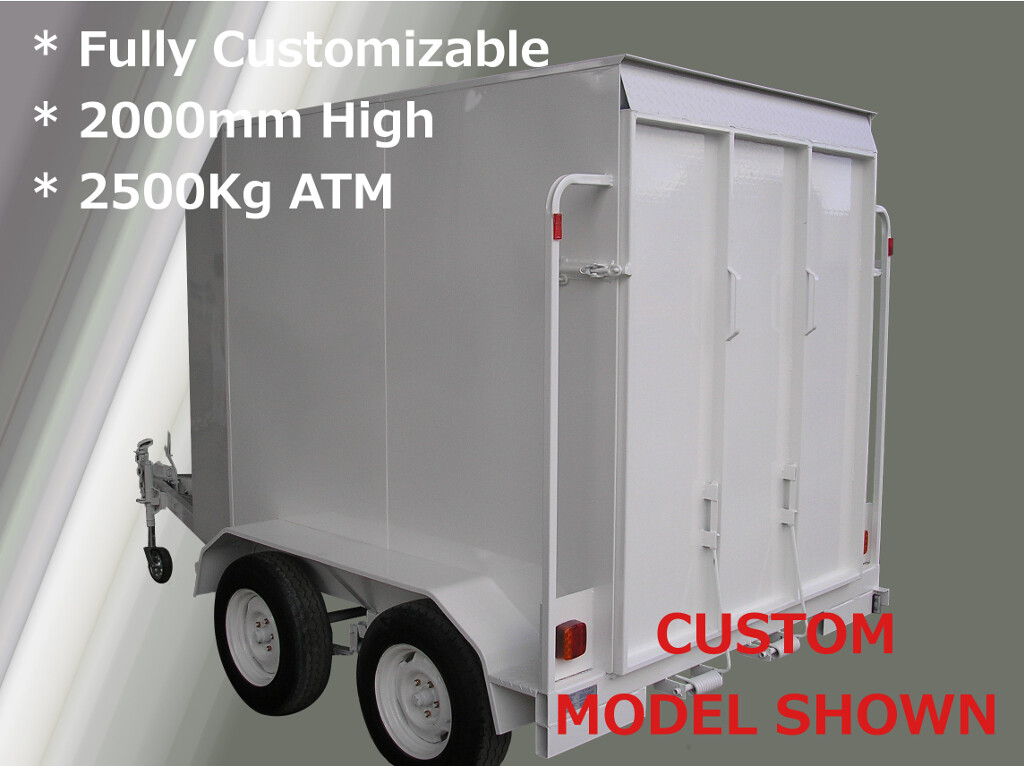

Standard 2000mm High Integral Pantec, 2.5T, Tandem Axle
- Reference No:
- 913
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Tandem Axle
- Trailer
- White
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.10.0028 - 2400x1500(8x5) PBLT.10.0029 - 3000x1800(10x6) PBLT.10.0030 - 3600x2000 |
| ATM | 2500 Kg |
| Axle | 45mm Round SL |
| Body | Checkerplate Floor 2.1mm Flat Zinc Sheeting RHS Frame |
| Brakes | 10" Electric Both Axles (In Cab) Park Brake & Brake-Safe - Break Away |
| Chassis | Drawbar - 100x50x4mm Cross Runner - 50x50x2mm Side Runner - 50x50x3mm Front Cross Runner - 50x50x3mm Rear Cross Runner - 75x50x3mm |
| Coupling | Electric 50mm |
| Finish | Etch Price & Two Pac White |
| Hubs and Bearings | 5 Stud SL |
| Safety Chain | 10mm Rated Double |
| Suspension | 5 Leaf 45x8mm Shackle Rocker |
| Wheels | 14" 5 Stud Second Hand & New 185R14Lt Tyres + Spare |
| Rear Door | Double Side Hinge, Three-Way Flush Lock & Inside Spring Bolts |
| Common Articles | Lights In Gussets LED Lights to ADRs Mudguard Support Front & Rear - C/Plate Folded Plug Holder 8" Heavy Duty Swivel Jockey Wheel Spare Carrier |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.8.0001 | Spring Assisted Ramp, 4ft Wide in leiu |
| PBLO.8.0002 | Spring Assisted Ramp, 5ft Wide in leiu |
| PBLO.8.0003 | Spring Assisted Ramp 6ft Wide in leiu |
| PBLO.8.0004 | Lift-Up Gas Strut Door, 4ft Wide in leiu |
| PBLO.8.0005 | Lift-Up Gas Strut Door, 5ft Wide in leiu |
| PBLO.8.0006 | Lift-Up Gas Strut Door, 6ft Wide in leiu |
| PBLO.8.0009 | Side Door Lift up c/w Gas Struts & Three-Way Flush Lock |
| PBLO.8.0011 | Truncated Roof 300 x 300 |
| PBLO.8.0012 | Tapered Front, to Drawbar Shape incl. 600 Extension of Body |
| PBLO.8.0013 | Rotary Roof Vent (Ea.) |
| PBLO.8.0014 | Aluminium Stoneguard, 400mm High, Front of Guards |
| PBLO.8.0015 | Internal LED Strip Light at Rear |
Make an Enquiry
If you are interested in this item (or any others) and would like more information, why not contact us on the phone number or enquiry form below.
(07) 3271 1744
