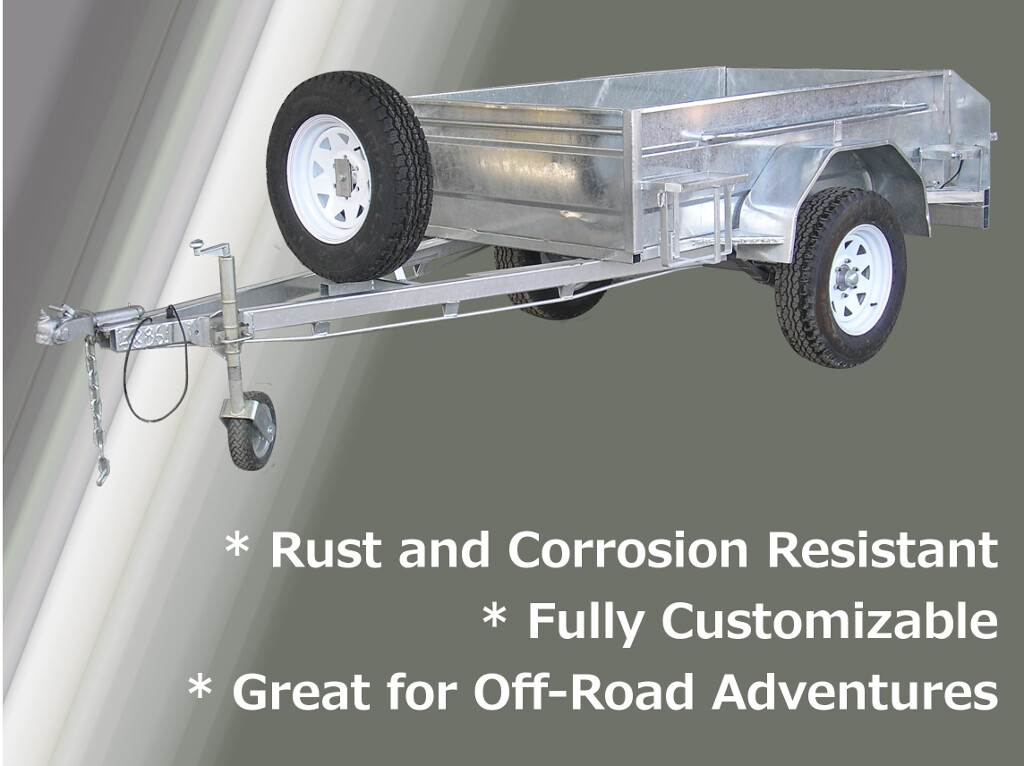

Standard Off Road Grand Tourer Trailer
- Reference No:
- 918
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Silver
- Single Axle
- Trailer
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Sizing | PBLT.6.0003 - 1800x1200 (6x4) PBLT.6.0004 - 2100x1200 (7x4) |
| ATM | 750 Kg |
| Axle | 45 mm Square Parallel |
| Body | Panels Ribbed 510mm High Rear Tailgate 2 x Jerry Can Holders, 1 x Gas Bottle Holder 4.5 Kg |
| Chassis | Side Runner - 50x50x3mm Front Cross Runner - 50x50x3mm Rear Cross Runner - 75x50x3mm Cross Runner - 50x50x2mm Drawbar - 75x50x3mm - Ext. to 1800 F-F Drawbar Webb - 14mm Round Bar |
| Corner Post | 50x50x2mm Front (Capped Bottom)& Rear |
| Coupling | 360 Degree Poly Block or Ball Coupling |
| Finish | Hot Dipped Galvanized |
| Floor | Checkerplate 2.1mm |
| Hubs and Bearings | 6 Stud Parallel |
| Safety Chain | 10mm Rated Single |
| Structural Capacity | 1300 Kg |
| Suspension | Outback 60x7mm 6 Leaf Long Shackle |
| Tie Rail | 20nb Pipe - Front, Rear & Sides |
| Wheels | 16" 6 Stud Sunrasia & New 205R16 Tyres + Spare |
| Common Articles | Lynch Pins & Bullets to Secure Tailgate Lights on Rear Gusset LED Lights to ADRs Mudguard Support Front & Rear- C/Plate Folded Plug Holder Vertical Spare Carrier Encased Wiring Swivel Cushion Jockey Wheel Provision for Tool Box on Drawbar |
Product Options
This section outlines some of many options that are availble
| Code | Details |
|---|---|
| PBLO.6.0002 | Jerry Can Holder Drop In |
| PBLO.6.0003 | Jerry Can Holder Front Access |
| PBLO.6.0004 | Jerry Can Holder Drop In on Step |
| PBLO.6.0005 | Jerry Can Holder Front Access on Step |
| PBLO.6.0006 | Gas Bottle Holder 4.5 Kg |
| PBLO.6.0007 | Gas Bottle Holder 4.5 Kg on Step |
| PBLO.6.0008 | Gas Bottle Holder 9 Kg on Drawbar |
| PBLO.6.0009 | Battery Box c/w Lid |
| PBLO.6.0010 | Kitchen Box on Side Hinge Tailgate |
| PBLO.6.0011 | Bed Base, Hinged, Gas Strutted |
| PBLO.6.0012 | Removable 'A' Step c/w Aluminium C'Plate |
| PBLO.6.0013 | Mudguard Steps Front & Rear - Both Sides |
| PBLO.6.0014 | Side Hinge Tailgate (Lights on Gussetts) |
| PBLO.6.0015 | Water Tank Kit - Poly Tank 65Lt. Filler, Hand Pump Tap |
| PBLO.6.0016 | Rear Reciever Bar Mount |
| PBLO.6.0017 | Front and Rear Side Gussets |
| PBLO.6.0018 | Stoneguard - SHS Frame, H'Duty Cloth on Drawbar |
