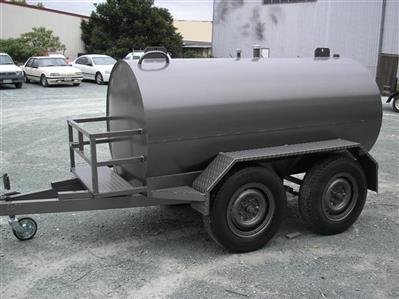

Standard 2200Lt Unbraked, Tandem Axle Tanker Trailer
h it is standing. Towing safety is improved with the 10mm rated double safety chain and 3.5T 50mm ball used for coupling. Tank fittings include outlets, drain, plug, breather and filler.
- Reference No:
- 934
- Standard:
- Yes, this product is stock standard
- Tags:
-
- Grey/Charcoal
- Tandem Axle
- Tank
- Trailer
Technical Specifications
This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.
| Attributes | Details |
|---|---|
| Axle | 45mm Square SL |
| Body | Tank Cylinder - 3mm Rolled Plate & Dished Ends Internal Half Baffle Drum Rack on Drawbar (RHS Frame, Checkerplate Floor) Tandem Axle Checkerplate Mudguards Front & Rear Checkerplate Mudguard Step Passenger Side Handle Vertical Spare Wheel Carrier on Drawbar Top Mounted Lifting Lug Points Tank Fittings (1" Breather,2" Filler,2" Outlet (Top Rear),1" Outlet x 2 (Ends at Bottom),1" Drain & Plug) |
| Coupling | 3.5T 50mm Ball |
| Finish | Etch Prime & Hammertone Charcoal Top Coat |
| Jocky Wheel | 8" Heavy Duty Swivel |
| Safety Chain | 10mm Rated Double |
| Suspension | 6 Leaf 45x8mm Shackle Rocker |
| Wheels | 16" 6 Stud Sunrasia & Second Hand 205R16 Tyres + Spare |
| Desiel Capacity | 2200Ltr Maximum |
