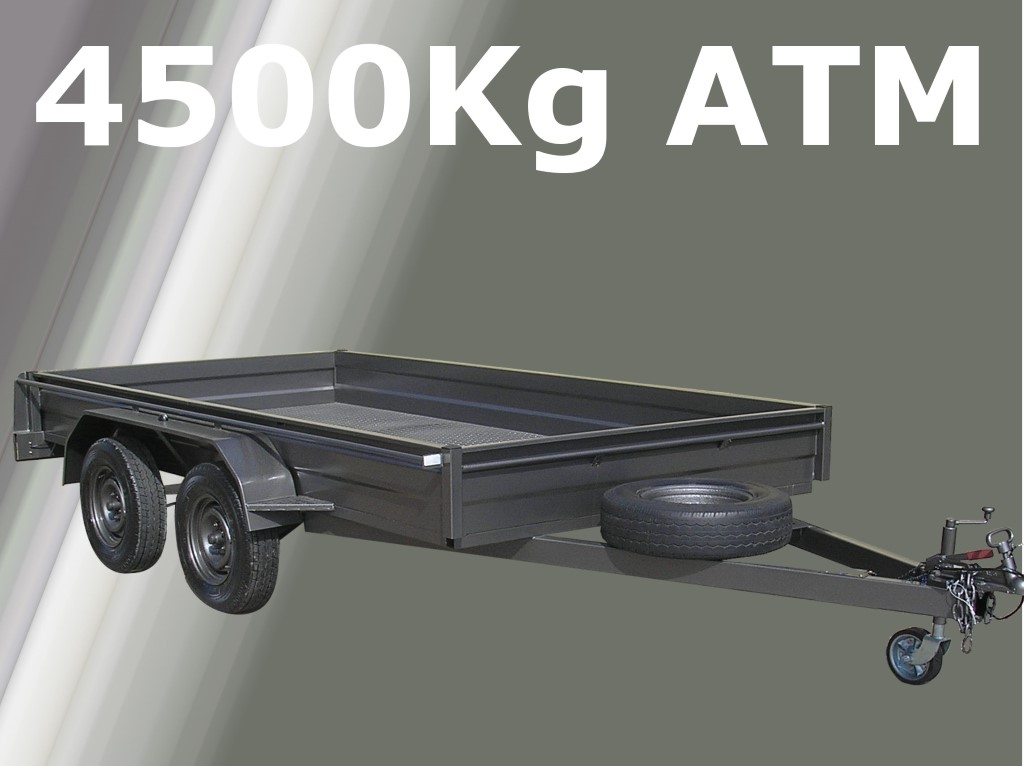

Standard 4.5T, Tandem Axle, Box Trailer


Standard 4.5T, Tandem Axle, Box Trailer
Reference No:
883
Standard:
Yes, this product is stock standard
Tags:
  • Grey/Charcoal
  • Tandem Axle
  • Trailer

Technical Specifications

This section outlines some of the more technical aspects of the product displayed above. Please note that the following information applies to a stock standard item only. Adding, removing or modifing components may alter it's dimentions, weight, capacity or any other of the items listed below.

Attributes Details
Sizing PBLT.2.0031 - 2400x1500(8x5)
PBLT.2.0032 - 2400x1800(8x6)
PBLT.2.0033 - 2700x1500(9x5)
PBLT.2.0034 - 2700x1800(9x6)
PBLT.2.0035 - 3000x1800(10x6)
PBLT.2.0036 - 3600x1800(12x6)
ATM 4500 Kg
Axle 60 Round 3T
Body Panels Ribbed 310mm High
Rear Tailgate
40x40mm SHS Under Lip
Brakes 12" Electric Both Axles (In Cab)
Park Brake Lever & Brake-Safe - Breakaway
Chassis Side Runner - 75x50x4mm
Front & Rear Cross Runner - 75x50x4mm
Cross Runner - 75x50x2mm - (5) 8x5
Cross Runner - 75x50x2mm - (6) 9x5
Cross Runner - 75x50x2mm - (7) 10x6
Cross Runner - 75x50x2mm - (8) 12x6
Drawbar - 125x75x4mm & Webbing
Corner Post 50x50x2mm Front (Capped Bottom) & Rear
Coupling Fixed Ring 75mm
Finish Etch Prime & Hammertone / Enamel Top Coat
Floor Checkerplate 3.0mm
Hubs and Bearings 6 Stud, 3T
Safety Chain 10mm Hi-Tensile Double
Structural Capacity 4500 Kg
Suspension 50x9mm 6L Hook & Eye Load Share
Tie Rail 20nb Pipe - Front, Rear & Sides - Tagged
Wheels 16" 6 Stud Sunrasia & New 225R16 Tyres & New Spare
Common Articles Lynch Pins & Bullets to Secure Tailgate
Rear Lights on Gussets
LED Lights to ADRs
Mudguard Support Front & Rear - C/Plate Folded
Plug Holder
Spare Carrier - Double Bolt
10" Extra Heavy Duty Jockey Wheel

Product Options

This section outlines some of many options that are availble

Code Details
PBLO.3.0001 FARM TUFF: Upgrade Structural Capacity from 2000kg to 2500kg, Drawbar: 100 x 50 x 3mm, Rocker Roller Suspension 60 x 6.5mm 7 Leaf, Side & Front Runners: 50 x 50 x 3mm, Cross Runners: 50 x 50 x 2mm, Checker Plate Mudguards, Steel Encased Wiring, 10mm Doubl
